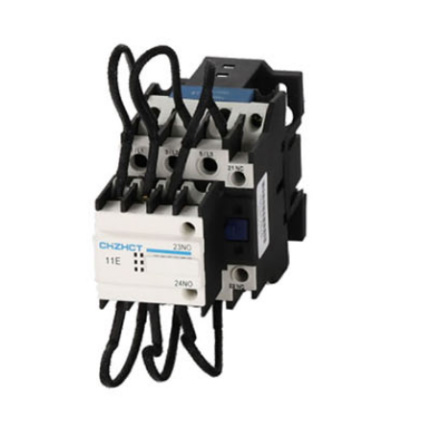

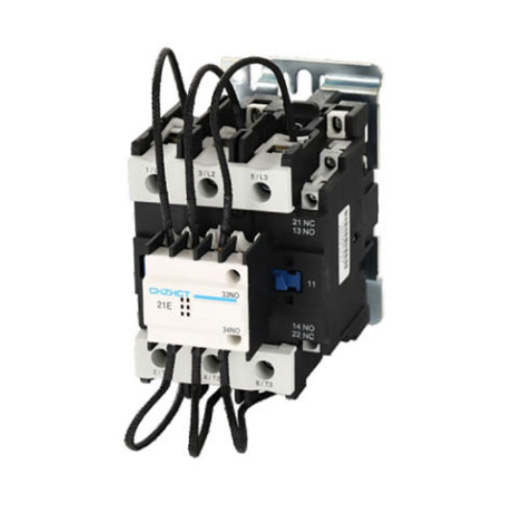

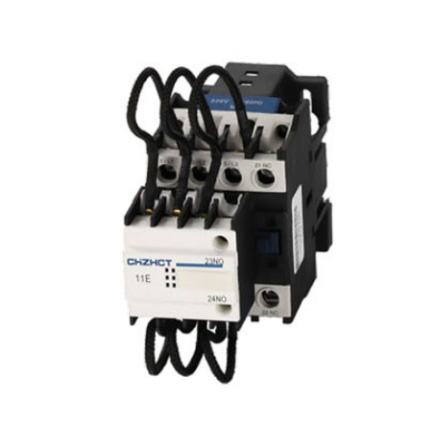

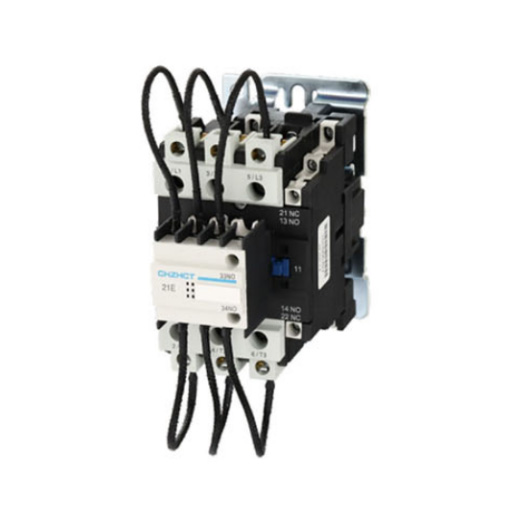

CJ19 series capacitor changeover contactor
advantage
All products of the company can be customized for production according to user usage scenarios.
Type and meaning

Notes:
1.The number of auxiliary contacts is represented by two digits,of which he tens digit is the logarithm of normally open contacts,and the units digit is the logarithm of normally closed contacts.
2. For AC-6b 400vAT,the rated working currents corresponding to various specification codes are 25(18A)□32(24A)□43(29□50(36A)□63(48A)□95(58A)□125(87A).
Normal working conditions and installation conditions
The ambient air temperature should not exceed +40℃, with the average temperature of no higher than +35℃ within 24 hours.The lower limit of the ambient air temperature should be -5℃: When the highest temperature is +40℃, the relative humidity of the air should not be higher than 50%; A higher relative humidity is allowed at a lower temperature;
The altitude of the installation site should not exceed 2000m;
Pollution level: level 3;
Installation category: category II;
Installation condition: the inclination between the installation surface of the contactor and the vertical plane should not exceed 5°.
Impact and vibration: the product should be installed in a place without obvious shaking, impact and vibration.
Schematic diagram of wiring
For the schematic diagram of wiring of CJ19 series,please refer to Fig. 1.

L1~L3 should be connected to the power supply side;T1~T3 should be connected to the load side.
Main parameters and technical performance
CJ19 | 25 | 32 | 43 | 63 | 95 | 115 | 150 | 170 | |
Rated insulation voltage(Ui)V | 500V | 690V | |||||||
Rated working voltage(Ue)V | 220V/240V、380V/400V | ||||||||
Controllable capacitor Capacity(Qn)Kva |
220V | 6 | 9 | 10 | 15 | 28.8(240V) | 34.5(240V) | 46(240V) | 52(240V) |
380V | 12 | 18 | 20 | 30 | 50(400V) | 60(400V) | 80(400V) | 90(400V) | |
Conventional free air thermal current Ith |
25 | 32 | 43 | 63 | 63 | 200 | 200 | 275 | |
Rated working current(AC-6b)le A | 17 | 23 | 29 | 43 | 43 | 87 | 115 | 130 | |
Inrush current suppression capability | 20le | ||||||||
Control power supply voltage UsV | 110、127、220、380 | ||||||||
Auxiliary contact | AC-15:360VA DC-13:33W Ith:10A | ||||||||
Operating frequency times/h | 120 | ||||||||
Electrical endurance 10,000 times | 10 | 2 | |||||||
Mechanical endurance 10,000 times | 100 | 300 |
Dimensions and type | Outline dimensions | Installation dimensions | ||||||
A | B | C | D | A | B | φ | Calliper gauge | |
CJ19-25 | 76 | 47 | 125 | 120 | 35 | 50/60 | 4.5 | 35 |
CJ19-32 | 86 | 58 | 135 | 130 | 40 | 50/60 | ||
CJ19-43 | 86 | 58 | 135 | 130 | 40 | 50/60 | ||
CJ19-63 | 128 | 79 | 156 | 150 | 40 | 100/110 | 6.5 | 35/75 |
CJ19-80 | 128 | 87 | 160 | 200 | 40 | 100/110 | ||
CJ19-95 | 128 | 87 | 160 | 200 | 40 | 100/110 |
Shape and installation dimensions(mm)

Fig.2 Diagram of outline and installation dimensions of CJ19-25,32,43
