CJ40 series AC contactor(ZNFO Traditional series)

CI40 series AC contactor is mainly used in the electric power circuits with the frequency of AC 50Hz (or 60Hz), the rated working voltage of up to 690V (or 1140V) and the rated working current of up to 1000A for connecting and breaking circuits, and working with the appropriate thermal relay or electronic protection device to form the motor starter to protect the circuits that may be overloaded.Executive standards:GB14048.4 and1EC60947-4-1.etc.

product details

Overview

product details

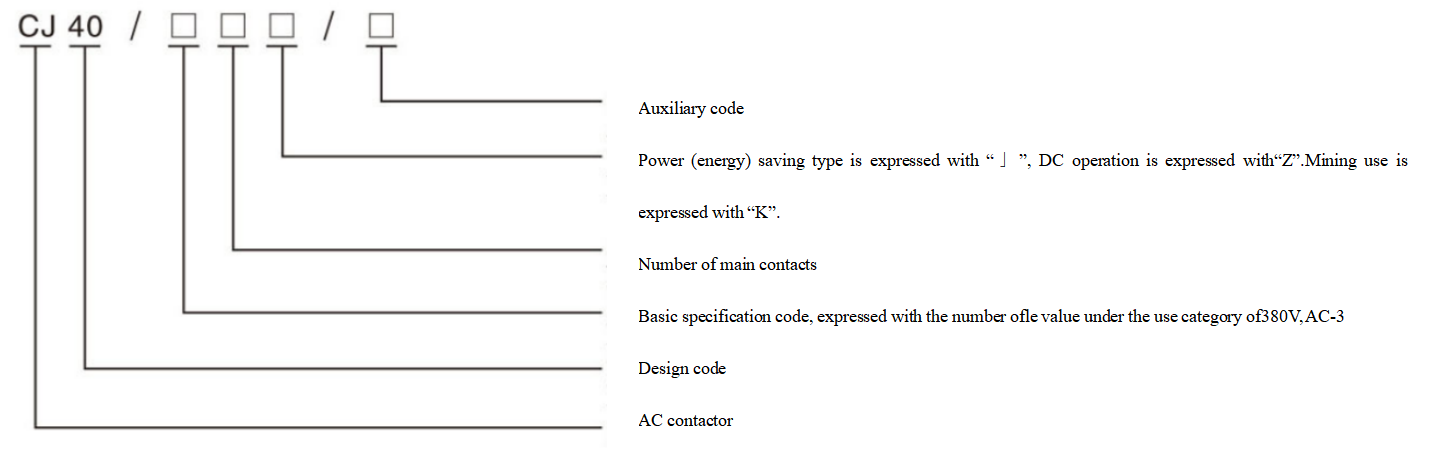

Type and meaning

Type and meaning

The auxiliary code is composed of 5 parts, which are selected in the following order as needed:

In the first part, “y” means general type, “N” (can be omitted) means reversible type;

In the second part, l digit is used to indicate the number of poles of the main circuit: 3 and4 respectively indicate 3 and 4 poles, and 3 can be omitted;

In the third part, 2 digits are used to indicate the highest rated working voltage, "06" (which can be omitted) indicates 690V11，indicates 1140V;

The fourth part indicates the rated control power supply voltage, with letters "Ac" indicating alternating current 50 Hzl and "Dc" indicating direct current. The value of the rated control power supply voltage is behind the letters, but “AC380” can be omitted;

In the fifth part,the letter"□ "and two digits are used together to indicate the type and number of auxiliary contacts, of which the first digit indicates the number of pairs of normally open auxiliary contacts and the second digit indicates the number of pairs of normally closed auxiliary contacts, but“□42"can be omitted.

Note:This item includes two parts, i.e.,the number of main contacts and the number of auxiliary contact,which are indicated by number respectively,as shown in the diagram below.( -□□-□□ )indicates: - number of normally open main contacts,number of normally closed main contacts - number of normally open auxiliary contacts,number of normally closed auxiliary contacts

Normal working conditions and installation conditions

□The altitude of the installation site should not exceed 2000m;

□The ambient air temperature should not be higher than +40℃ and not be lower than -5℃;

□When the highest temperature is +40℃, the relative humidity of the air on the installation site should not be higher than 50%; A higher relative humidity is allowed at a lower temperature; In the wettest month, the monthly average minimum temperature should not exceed +20℃, and the average maximum relative humidity should not exceed 90%.Measures should be taken for condensation on the product due to temperature change;

□The inclination between the installation surface and the vertical plane should not exceed±5°.

□Pollution level: level 3;

□The product should be installed in a place without obvious shaking, impact and vibration.

Structural features of the product

CJ40-63~1000 AC contactor adopts the structure of oven type, normal installation, direct acting and double breakpoints.The auxiliary contacts are installed on both sides of the main contact as independent components, which are electrically separated;The iron core is a U-shaped structure with the permanent air gap.The base is made of aluminum alloy die-casting (for CJ40-630A and above), which is installed by screws: But. The base of CJ40-63~125 is made of unsaturated polyester glass fiber reinforced molding compound, which may be installed by screws or by “TH75” guide rail.With the advantages of high breaking capacity and high reliability, etc., the arc extinguishing chamber is made of are resistant plastic and iron grid.

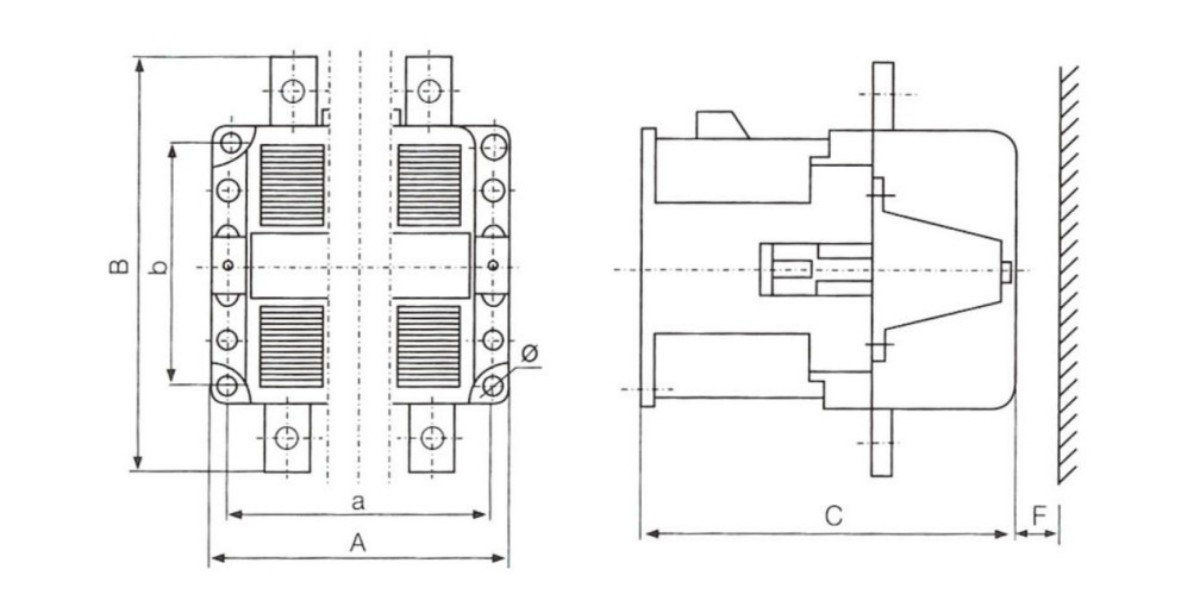

Outline and installation dimensions

Outline and installation dimensions of CJ40-63~1000 AC contactor

Product type	Outline dimensions (Max)			Installation dimensions			Installation rail	Installation area F min

	A	B	C	a	b	φ		380V	660v
CJ40-63-125	116	143	154	100	90	5.8	Th75	20	40
CJ40-160-200	146	186	184	130	130	9	-	30	40
CJ40-250								40	60
CJ40-315-400	190	235	230	160	150	9		40	60
CJ40-500								50	70
CJ40-630-1250	245	345	288	210	180	11		0	0
CJ40-63/4~125/4	143	143	154	128	90	5.8	Th75	20	40
CJ40-63/4~200/4	187	186	184	170	130	9	-	30	40
CJ40-250-4								40	60
CJ40-315/4~400/4	236	235	230	216	150	9		40	60
CJ40-500/4								50	70

Main parameters and technical performance

Type and specifications	Frame code	u A		th A	leA under intermittent periodic work			ing system AC-4	Pe kW under AC-3	leA nuder different intermittent working systems
					AC-1	AC-2	AC-3
C40-63	125	690	220	80	80	63	63	63	18.5	80
			380						30
CJ40-80			660
			220			80	80	80
			380
C140-100			660			63	63	63	55
			220	125	125	100	100	100	30	125
			380
CJ40-125			660			80	80	80
			220			125	125	125
			380					10
			660			80	80	80
CJ40-160	250	690	220	250	250	160	160	160	45	250
CJ40-200			380						75
			660			125	125	125	110
			220			200	200	200	55
C40-250			380						90
			660			125	125	125	110
			220			250	250	250	75
			380					225	132
			660			125	125	125	110
CJ40-315	500	690	220	500	500	315	315	315	90	500
CJ40-400			380					250	160
			660						300
CJ40-500			220			400	400	400	110
			380					315	220
			660			315	315		300
			220			500	500	500	150
			380					400	280
			660			315	315	315	300
CJ40-630	1000	690	220	800	630	630	630	630	200	630
CJ40-800			380					500	335
C140-1000			660			500	500	500	475
			220		800	800	800	800	250	800
			380					630	450
CJ40-1250	1250		660			500	500	500	475
			220	1000	1000	1000	1000	1000	360	1000
			380						550
			660			630	630	500	570
			220	1250	1250	1250	1250	1250	375	1250
			380						600
			660			800	800	600	630
C40-125/11	1250	1140	1140	125	125	40	40	40	55	125
C140-250/11	250		1140	250	250	80	80	80	110	250
C140-500/11	500		1140	500	500	160	160	160	220	500
CJ40-1000/11	1000		1140	1000	1000		400		600	1000
