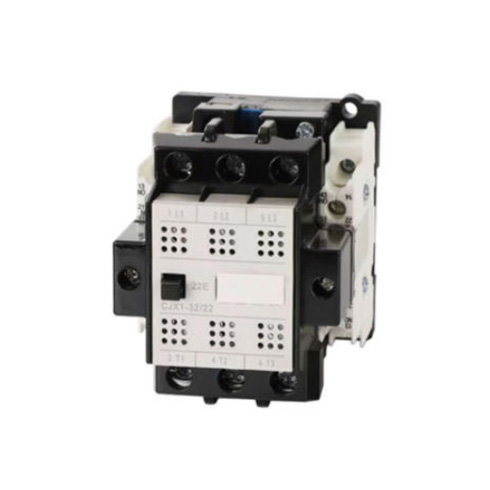

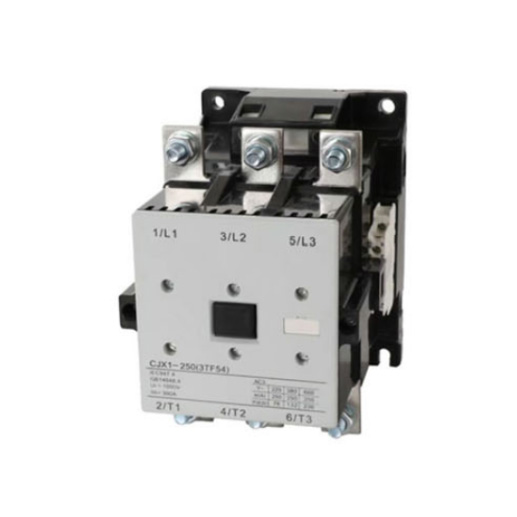

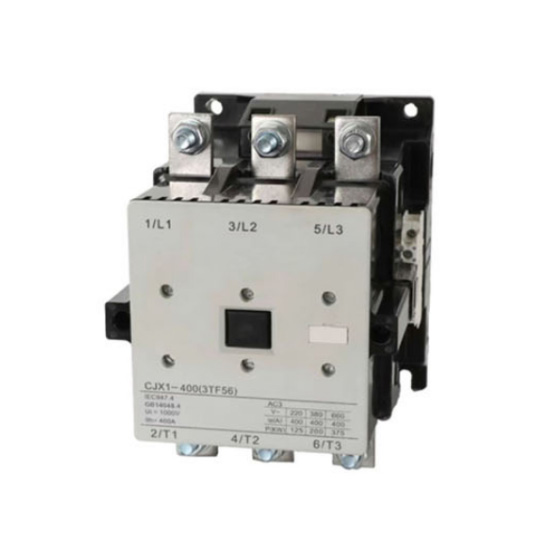

CJX1 AC contactor (ZNFO Traditional series)

CIX1 series AC contactor (hereinafter referred to as the contactor) is mainly used in the circuits with the frequency of AC 50Hz (or 60Hz). the rated working voltage of up to 660V and the rated working current of up to 400A when the rated working voltage is 380V under the use category of AC-3 for connecting and breaking circuits remotely, and working with the JRS2(3UA5) thermal relay of the corresponding model to form the electromagnetic starter to protect circuits that may be overloaded.

advantage

All products of the company can be customized for production according to user usage scenarios.

product details

Type and meaning

Normal working conditions and installation conditions

Altitude: not higher than 2000m;

The ambient air temperature should be -5℃ ~+40℃, with the average temperature of no higher than +35℃ within 24 hours.

When the highest temperature is +40'c,the relative humidity of the air should not be higher than 50%; A higher relative humidity is allowed at a lower temperature, such as not higher than 90% under +20℃. Special measures should be taken for occasional condensation due to temperature change:

Pollution level: level 3;

Installation category: category II;

Installation condition: the inclination between the installation surface and the vertical plane should not exceed ±5°;

The product should be installed in a place without obvious shaking, impact and vibration.

Main parameters and technical performance

Type			CJX1 -9	CJX1 -12	CJX1 -16	CJX1 -22	CJX1 -32	CJX1 -45	CJX1 -63	CJX1 -75	CJX1 -85	CJX1 -110	CJX1 -140	CJX1 -170	CJX1 -205	CJX1 -250	CJX1 -300	CJX1 -400
Rated insulation voltage U iv			660
Rated working current le(A)	AC-3	380	9	12	16	22	32	45	63	75	85	110	140	170	205	250	300	400
	AC-3	660	7.2	9.5	13.5	13.5	18	45	63	75	75	110	110	170	170	200	250	320
	AC-4	380	3.3	4.3	7.7	8.5	12	24	28	4	42	54	68	75	96	110	125	150
	AC-4	660	1.4	1.9	3.5	4	7.5	12	14	17	21	27	35	42	67	95	110	115
Controllable power Pe(kW)	AC-3	380	4	5.5	7.5	11	15	22	30	37	45	55	75	90	110	132	160	200
	AC-3	660	5.5	7.5	11	11	15	37	55	55	55	90	90	160	160	185	220	315
	AC-4	380	1.5	22	4	4	5.5	11	11	18.5	22	30	37	37	45	55	55	75
	AC-4	660	11	15	3	4	7.5	11		15	18.5	22	30	37	55	75	90	110
Conventional thermal current>It		A	20		30		45	70		90		150		170	205	250	300	400
Rated operating frequency times h		AC-3	1200				600							300
Rated operating frequency times h		AC-4	300												150
Mechanical endurance(10,000times			1000					800		600
Electrical endurance(10,000times)AC-4		AC-3	100				80			60
Electrical endurance(10,000times)AC-4			20					15		10
Specification of matched fuse(RT16)A			16	20	25	32	50 80		100 125		160	200	200	250	250	300	400	500

The rated control power supply voltage Us of the contactor at Ac 50/60 Hz is: 36/42, 48/58, 110/132, 127/152,220264,380/456(V).

The contactor coil can reliably hold at85%~110% of the rated control power supply voltage, and can reliably release at 20%~75% of the rated control power supply voltage.

For the auxiliary circuit,the rated insulation voltage (Ui) is 660V; the conventional thermal current(Ith) is 10A;0ther parameters are shown in Table 3

Use category	Rated working voltage U eV	Rated working current IeV	Rated control power
			AC VA	DC W
AC-15	36	10	360
	110	3.2
	220	1.64
	380	0.95
DC-13	48	0.69		33
	110	0.3
	220	0.15

Outline andinstallation dimensions

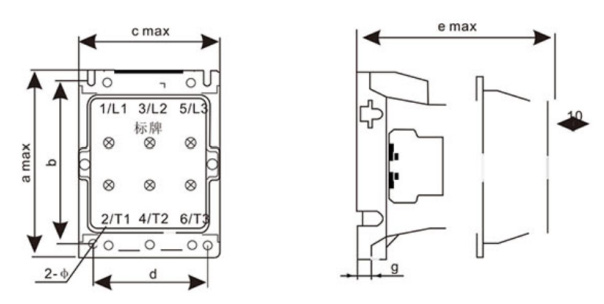

Fig.1 Outline and installation dimensions of CJX1-9/32

Type	a max	b	c max	d	e max	g	中
CJX1-9/12	79	60±0.60	46	35±0.50	106	8	+0.48 4.8
CJX1-16/22	89	75±0.60	46	35±0.50	116	8	+0.48 4.8
CJX1-32	90	75±0.60	74	50±0.550	109	8	.+0.48

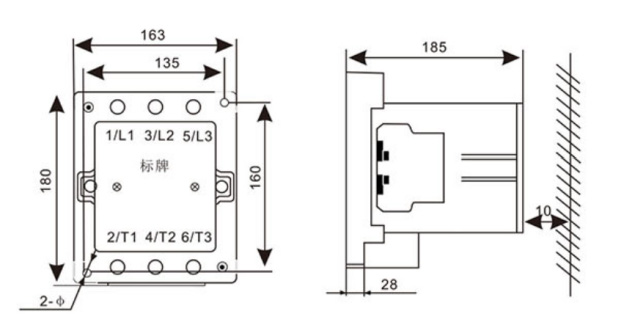

Fig.3 Outline and installation dimensions ofCJX1-170/205
Fig.4 Outline and installation dimensions ofCJX1-250/475

Type	a max	b	c max	d	e max	g
CJX1-170/205	180	160	163	135	185	28	8
CJX1-250/300	200	145	172	120	198	30.5	10.5
CJX1-400/475	200	160	187	130	222	39	10.5

Type	a max	b	c max	d			中
CJX1-45/63	120	100±0.70	92	70±0.60	125	20	+0.48
CJX1-75/85	135	110±0.70	105	80±0.60	145	20	+0.48
CJX1-110/140	158	130±0.80	125	100±0.70	155	30	+0.48
