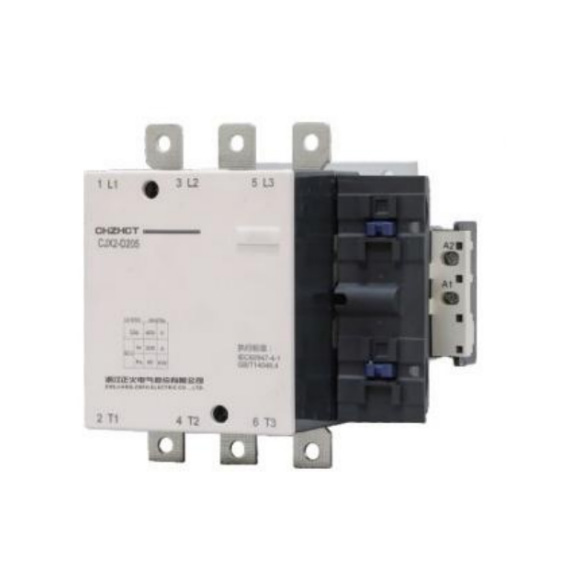

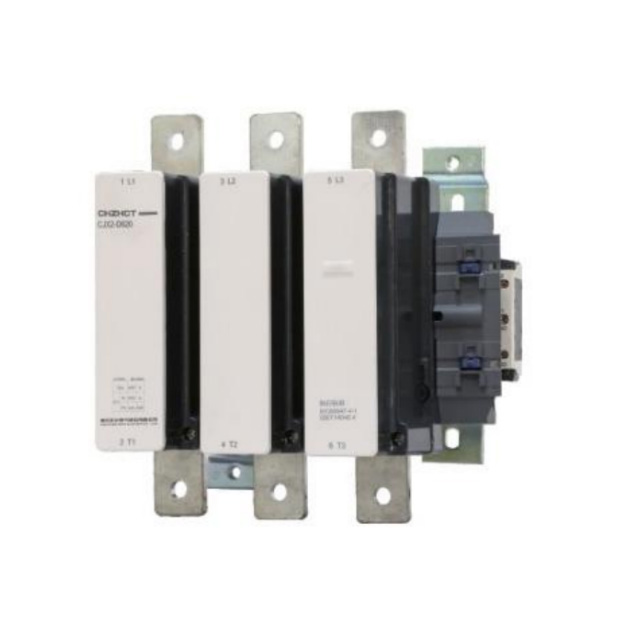

CJX2-D direct-acting AC contactor

CJX2D direct-acting AC contactor is mainly used in the electrical power systems with the frequency of AC 50Hz(or 60Hz),the rated working voltage of up to 1000V,and the rated working current of up to 1400A for remote connection and breaking of circuits,as well as starting,stopping, reversing and reverse connection of brake motors.
Executive standards:GB/T14048.4-2020,,IEC60947-1(1999),IEC947-4-1.
There are nine specifications for this series of contactors,including CJX2-D115,150,170,205,245,300,410,475,620.

advantage

All products of the company can be customized for production according to user usage scenarios.

product details

Type and meaning

Main parameters and technical performance

Type		Unit	CJX2-D115		CJX2-D150		CJX2-D170	CJX2-D205
Rated current		A	115		150		170	205
Rated thermal current		A	200		220		250	275
3-phase motor with rated power	220/240V	KW	30		40		55	63
	380/400V	KW	55		75		90	1110
	400V	KW	59		80		100	110
	500V	KW	75		90		110	120
	600/690V	KW	80		100		110	29
	1000V	KW	75		90		100	00
3-phase motor with rated power	200/230V	KW	9		11		22	25
	380V/400V	KW	18.5		22		40	45
	440V	KW	18.5		22		45	51
	500V	KW	30		37		51	59
Weight		Kg	2.25		2.25		2.25	4.6
L×W×H Volume		mm	132×120×158		132×120×158		132×120×158	168.5×174×181
Power connection wire section		mm	120		120		120	150/225×3
Mounting screw Number of guide rails X rail center distance		mm	130×(95-110)-6.5 2×35×100		130×(95-110)-6.5 2×35×100		130×(95-100)-6.5 2×35×100	(106-120)×80 -6.5
Reference type			CJX2-D 115		CJX2-D 150		CJX2-D 170	CJX2-D 205
Control circuit voltage	AC50HZ	V	24(B5)	42(D5)		48(E5)	110(E5)	220(M5)
	AC60HZ	V	24(B6	42(D6)		48(E6)	110(E6)	220(M6)
	AC50/AC60	V	24(B7	42(D7)		48(E7)	110(E7)	220(M7)
	DC	V	24(BD	42(D8)		48(E8	72(ND)	110(FD)

Type		Unit	CJX2-D245	CJX2-D300	CJX2-D410	CJX2-D475	CJX2-D620
Rated current		A	245	300	410	475	620
Rated thermal current		A	315	400	500	700	1000
3-phase motor with rated power	220/240V	KW	75	100	110	147	200
	380/400V	KW	132	160	220	265	335
	400V	KW	135	200	250	280	400
	500V	KW	160	200	250	335	400
	600/690V	KW	160	220	280	355	450
	1000V	KW	147	160	185	355	450
3-phase motor with rated power	200/230V	KW	30	37	40	45	55
	380V/400V	KW	55	63	75	80	100
	440V	KW	63	75	80	100	110
	500V	KW	75	80	90	110	132
Weight		Kg	4.7	8.2	8.5	10.8	17.4
L×W×H Volume		mm	168.5×197×181	213×206×219	213×206×219	232×238×233	309×304×255
Power connection wire section		mm²	185/225×4	240/225×5	2×15030×5	2×20040×5	2040×B/260×5
Mounting screw Number of guide rails X rail center distance		mm	(106-120)×96-6.5	(106-120)×96-6.5	180×80066-102-8.5	180×80166-102-8.5	180×180100-195-10.5
Reference type			CJX2-D245	CJX2-D300	CJX2-D410	CJX2-D475	CJX2-D620
Control circuit voltage	AC50HZ	V	240(U5)	400(V5)	440(R5)
	AC60HZ	V	240(U6)	400(V7)	440(R6)
	AC50/AC60	V	240U7)		440(R7)	500IS5	600(Y5)
	DC	V	240(GDI)	250(V5)	440(RD)

Outline andinstallation dimensions

Type	A	B	C	b1	P	Q	S	Q1
CJX2-D115	158	120	132	158	35	60	18	25
CJX2-D150	158	120	132	158	35	60	18	25
CJX2-D170	158	120	132	158	35	60	18	25
CJX2-D205	168.5	174	181	137	40	69	20	59.4
CJX2-D245	168.5	197	181	137	48	69	25	51.5
CJX2-D300	213	206	219	145	48	91	25	74
CJX2-D410	213	206	219	209	48	91	25	74
CJX2-D475	233	238	232	209	55	108	30	77

Type	M	N		centre	Ga	Ha
CJX2-D115	134	96.5	75	M6
CJX2-D150	134	96.2	75	M6
CJX2-D170	134	96.2	75	M6		120-106
CJX2-D205	154	127	113.5	M8	80	120-106
CJX2-D245	172	127	113.5	M10	80	120-106
CJX2-D300	181	158	145	M10	80	120-106
CJX2-D410	181	158	145	M10	80	120-106
CJX2-D475	208	172	146	M10	80	180
CJX2-D620/1000	264	202	155	M12	80	180
