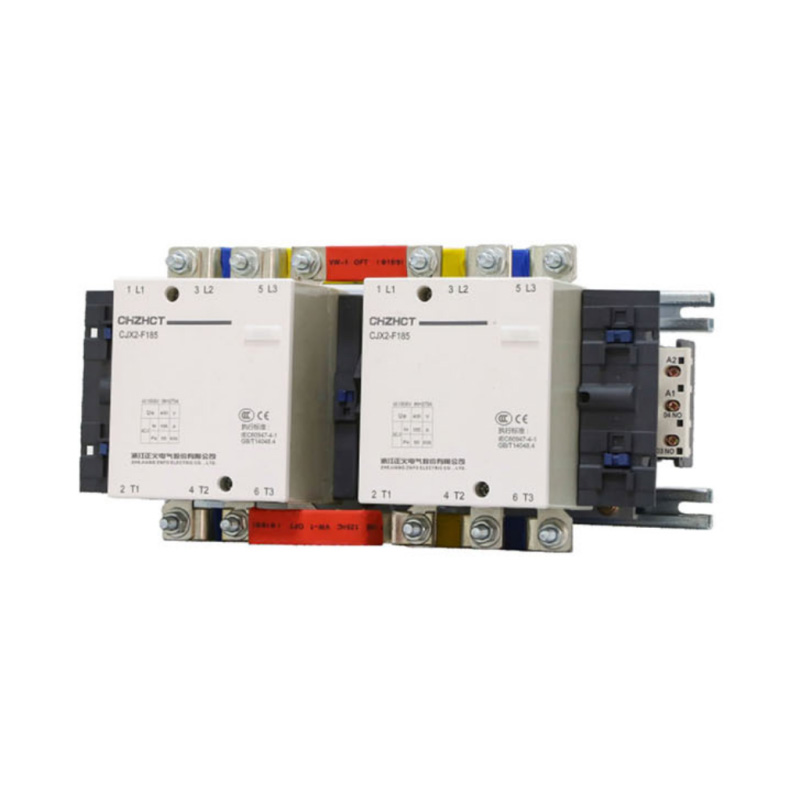

CJX2-N series interlocking contactor

CX2-N series interlocking contactor is mainly used in the circuits with the frequency of AC 50Hz (or 60Hz), the rated insulation voltage of up to690V, and the rated working current of up to 954A when the rated working voltage is 380V under the use category ofAC-3 for controlling reversibly operating or reversibly braking motors and dual power supply control, and working with the appropriate thermal relay to form the electromagnetic starter to protect the circuits that may be overloaded.Executive standards:GB14048.4 and 1EC60947-4-1.etc.

advantage

All products of the company can be customized for production according to user usage scenarios.

product details

Type and meaning

Normal working conditions and installation conditions

The altitude of the installation site should not exceed 2000m;

The ambient air temperature should not be higher than+40℃ and not be lower than-5℃.

When the highest temperature is +40℃, the relative humidity of the air on the installation site should not be higher than 50%;A higher relative humidity is lowed at a lower temperature:In the wettest month.the monthly average minimum temperature should not exceed +20℃ and the average maximum relative humidity should not exceed 90%. Measures should betaken for condensation on the product due to temperature change.

The inclination between the installation surface and the vertical plane should not exceed ±22. 5~.

Pollution level:level 3;

The product should be installed in a place without obvious shaking, impact and vibration.

Structural features of the product

The action mechanism is of direct acting type, and the contact is of double breakpoints.

With the combination function, all surfaces except for the installation surface may be additionally provided with accessories.

Auxiliary contact sets maybe additionally installed on both sides.

Auxiliary contact sets or air damping, type time relays may be additionally installed on the upper side.

The coil terminal may be additionally provided with various functional modules such as time delay units.

Both mechanical and electrical interlocking can be achieved.

Main parameters and technical performance

Type							CJX2- 09N	CJX2- 12N	CJX2- 18N	NCJX 2- 25N	CJX2- 32N	CJX2- 40N	CJX2- 50N	CJX2- 65N	CJX2- 80N	CJX2- 95N
Rated working current A				380V			9	12	18	25	32	40	50	65	80	95
Rated working current A				660V			20	8.9	12	18	21	34	39	42	49	55
Conventional thermal current It hA							20	20	32	40	50	60	80	80	125	125
Rated working voltage U eV							380
Rated insulation voltage U iV							690
AC-3			Electrical endurance 10*times				100	100	100	100	80	80	80	80	60	60
AC-3			Operating frequency times/h				1200	1200	1200	1200	600	600	600	600	600	600
AC-4			Electrical endurance 10*times				20	20	20	20	20	15	15	15	10	10
			Operating frequency times/h				300	300	300	300	300	300	300	300	300	300
			Rated working current leA			380V	3.5	5	7.7	8.5	12	18.5	24	28	37	44
			Rated working current leA			660V	1.5	2	2.8	4.4	7.5	9	12	14	17.3	21.3
Auxiliary contact	Electrical endurance	AC-151360VA				The same as the electrical endurance of the main contact(AC-3)
	Electrical endurance	DC-13(33W)
	Minimum load for connection					6V10mA
Coil		Rated control voltage UsV					24、48、110、220、380
		Pull-in voltage					(0.85~1.10)Us
		Release voltage					(0.20~0.75)Us
		Coil power			Pull-in		70	70	70	110	110	200	200	200	200	200
		Coil power			Holding		8	8	8	11	11	20	20	20	20	20

Outline andinstallation dimensions

Note: C1:CJX2-N+F4

C2:CJX2+SK2-2/3

Interlocking contactor type	A max	B max	C max	D max	C1	C2	a	b
CJX2-09N,12N	112	76	87	86	115	134	96	50
CJX2-18N	112	76	92	86	120	139	96	50
CJX2-25N	134	86	102	98	130	149	112	60
CJX2-32N	134	86	120	100	135	154	112	60

Note: C1: CJX2-N+F4

C2:CJX2+SK2-2/3

Interlocking contactor type	A max	B max	C max	D max	C1	C2	a	ai	b
CJX2-10N,50N,65N	176	128	145	138	149	168	49	90±0.70	100 110
CJX2-80N,95N	190	128	162	146	160	179	56	90±0.70	100 110
