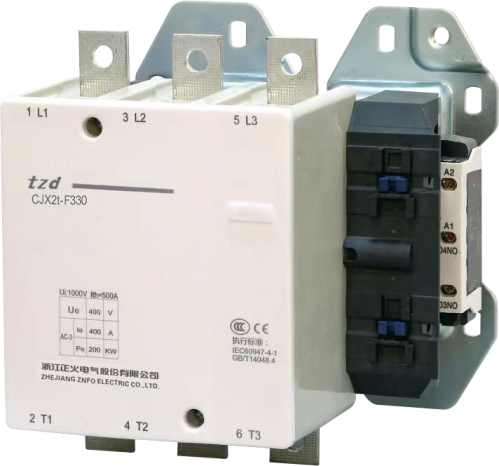

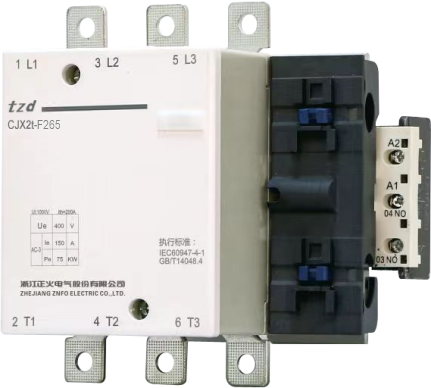

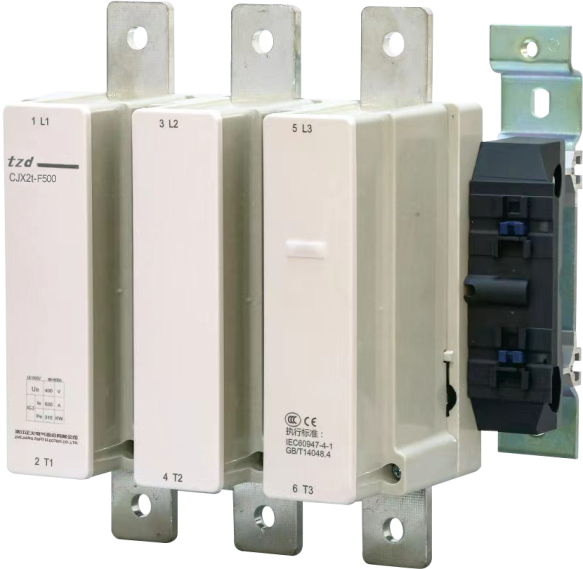

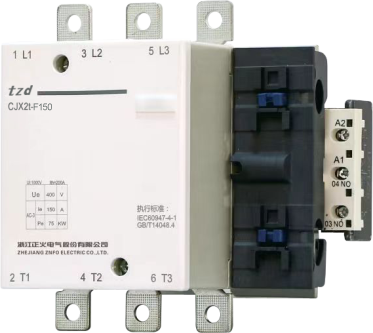

CJX2t-F ZNFO Special Series high-current AC contactor

CJX2tF direct-acting AC contactor is mainly used in the electrical power systems with the frequency of AC 50Hz(or 60Hz),the rated working voltage of up to 1000V,and the rated working current ofup to 1400A for remote connection and breaking of circuits,as well as starting,stopping, reversing and reverse connection of brake motors Executive standards:GB/T14048.4-2020,IEC60947-1(1999),IEC947-4-1.

There are 12 specifications for this series of contactors,including CJX2-F115,150,185,225,265,330,400,500,630,780,1200 and 1400.The outline and installation dimensions of this series of contactors are the same as those ofLC1-DandLC1-F.

CJX2t-F115-780 contactors can also beused as DC contactors.(Please contact the Company).

Advantage

All products of the company can be customized for production according to user usage scenarios.

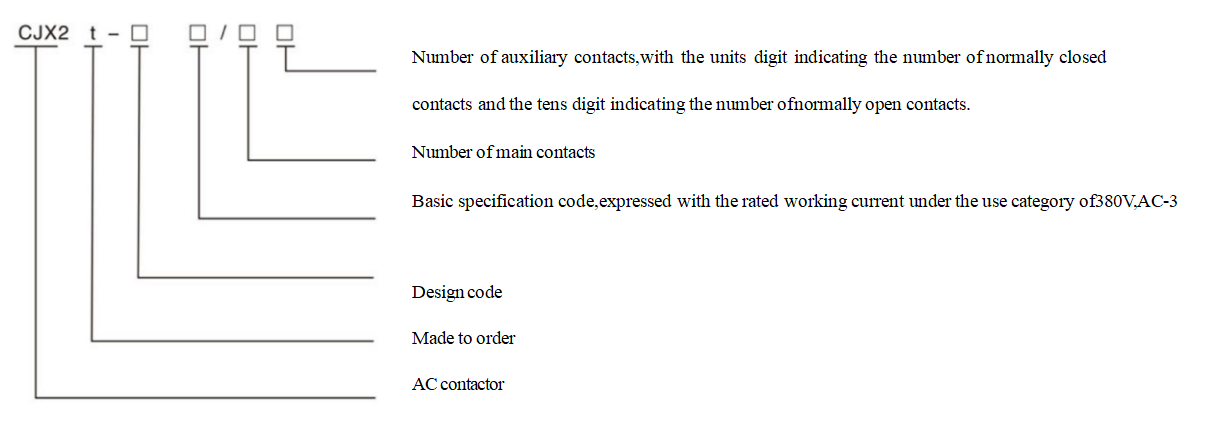

Type and meaning

Structural features of the product

□It has simple, compact , new and unique, with modular function and assembly modularization.

□The coil is packaged in plastic, with advanced technology, beautiful appearance, good insulation strength and high mechanical strength.

□For CJX2t-F115~780-1200-1400, coil and static iron core form a drawer for pushing in and pulling out by pressing the button and thus for easy repair.

□The are extinguishing chamber is made of high-strength plastic, which has high mechanical strength and good arc extinguishing performance,and is fixed by locking bar rotating compression spring, which is convenient and reliable.

□There are many auxiliary contacts, which are replaced easily, For CJX2t-F115-780~1200~1400 contactors, the coil is provided with a special auxiliary contact for DC control of self-locking conversion. It is allowed to additionally install two auxiliary contactor sets so that there are 8pairs of auxiliary contactors. The auxiliary contactor sets are installed only along the guide rail, with no need of screws. Give it a push, when you hear a click, the auxiliary contactor sets are installed successfully.If the air damping type time relay is required. it can be used directly to replace the auxiliary contact set.

□The contactor can save electricity significantly.CJX2t-F400-780~1200-1400 features AC input and DC control.

□The mechanical interlocking of the contactor is simple and reliable. Two contactors can be interlocked horizontally, C]X2t-F115contactors can also realize vertical interlocking of two contactors and vertical interlocking between three contactors.
