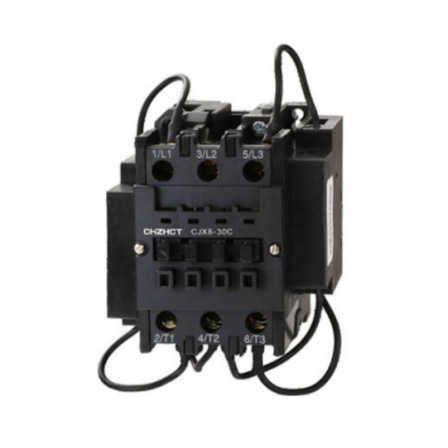

CJX8 (B) series AC contactor (2).jpg

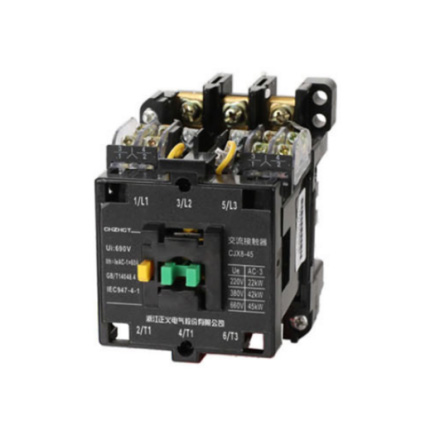

CJX8 (B) series AC contactor (3).jpg
CJX8 (B) series AC contactor (4).jpg

CJX8(B) AC contactor (ZNFO Traditional series)

CJX8(B)series AC contactor is mainly used in the electric power circuits with the frequency of AC 50Hz or 60Hz,the voltage of up to 690Vand the  rated  current  of up  to  370A  for  connecting  and  breaking  circuits  remotely  or  frequently  controlling  AC  motors  and  providing  the under- voltage protection.It  often  works with  the  JR29  series  thermal  relay  to  form  the  electromagnetic  starter  to  provide  overload  and  open-phase protection.It can also be provided with the mechanical interlocking to form a reversible contactor.

    Contact us

    advantage

    All products of the company can be customized for production according to user usage scenarios.
    product details

    Type and meaning

    CJX8 (B) series AC contactor

    Structural features of the product

    AC contactors of CJX8-30 and below adopt the “normal installation structure", that is, the contact system is at the front, and this system is at the back (near the installation surface: CiX8-37 and above adopt the "inverted structure", that is. the magnetic system is at the front and the main contact system is at the back.
    The moving contact is of bridge structure.For CIX8-105 and above, the main static contact can be separated from the main wiring, so it is not necessary to disassemble the main conductor when replacing the contact.For CIX8-9-25, there are four pairs of contacts (three pairs of main contacts and one pair of auxiliary contacts or four pars of main contacts).For CiX8-30 and above, the moving contact bracket is provided with three moving contacts, and the number of main contacts cannot be increased.
    CIX8-9~CJX8-25 AC contactor adopts enclosed natural arc extinguishing, C]X8-30-45 adopts ferromagnetic sheet for arc extinguishingCJX8-65 and above adopt ferromagnetic grid for arc extinguishing. All products adopt arc-resistant plastic arc chambers.
    CJX8-9~CJX8-30 AC contactor can be quickly installed on the 35mm installation rail conforming to IEC standards.This series of contactors can be provided with different types of auxiliary contacts to increase the convenience of use (see table).
    Executive standards:IEC60947-4-1,VDE0660,NFC63-110,NBNC63158,CE117-3,BS5425,NE50012,.GB14048. 4-2003

    Main parameters and technical performance

    Main parameters and technical performance indicators of the contactor
      Contactor type CJX8- 9 CJX8- 12 CJX8- 16 CJX8- 25 CJX8- 30 CJX8- 37 CJX8- 45 CJX8- 65 CJX8- 85 CJX8- 105 CJX8- 170 CJX8- 250 CJX8- 370

    Rated insulation voltage V

    		 690

    Conventional thermal

    Current A

    		 16 20 25 40 45 45 60 80 100 170 250 330 410
    Rated working current of AC3(A) 400V 9 12 16 25 30 37 45 65 85 105 170 250 370
    690V 3.5 4.9 6.7 13 17.5 21 25 45 55 82 118 170 268
      Rated control  power of AC3(KW) 400V 4 5.5 7.5 11 15 18.5 22 33 45 55 90 132 200
    690V 3 4 5.5 11 15 18.5 22 40 50 75 110 160 250
     Coil power(VA/W)   Starting 60/50 60/50 60/50 85/65 85/65 175/125 175/125 270/130 270/130 510/280 750/460 1100/600 1900/850
     Holding 9/2.2 9/2.2 9/2.2 10/3 10/3 22/5 22/5 30/8 30/8 32/9 60/15 66/16 100/27
    Coil voltage V   AC 24、36、48、110、127、230、400、415
      DC 24、48、110、220
      Type and number of auxiliary contacts available (0~4个)CA7 ( 0 ~ 4 个 ) C A 7 (0~4个)CA11

    Outline andinstallation dimensions

    CJX8 (B) series AC contactor (1)

    Fig.1 Outline and installation dimensions of CJX8-16

    CJX8 (B) series AC contactor (2)

    Fig.2 Outline and installation dimensions of CJX8-25

    CJX8 (B) series AC contactor (3)

    Fig.4 Installation rail for CJX8-9~30          Fig.5 Outline and installation dimensions of CJX8-37~45

    CJX8-(B)-series-AC-contactor-(4)

    Fig.6 Outline and installation dimensions of CJX8-65~85

    CJX8-(B)-series-AC-contactor-(5)

    Fig.7 Outline and installation dimensions of CJX8-105~370 (see table)

    Type A B C D E F G H
    CJX8-105 118max 154max 137max 140±0.5 35±0.31 Φ6.5+018 Φ6.5±0.2 ≥15
    CJX8-170 134max 165max 152max 150±0.5 40±0.31 6+0.3 7.5±0.36 ≥15
    CJX8-250 166max 206max 192max 190±0.575 50±0.31 7±0.29 8.5±0.29 ≥15
    CJX8-370 202max 252max 221max 220±0.575 60±0.31 7±0.29 8.5±0.29 ≥15
