DXZ Multi -function travel limit switch

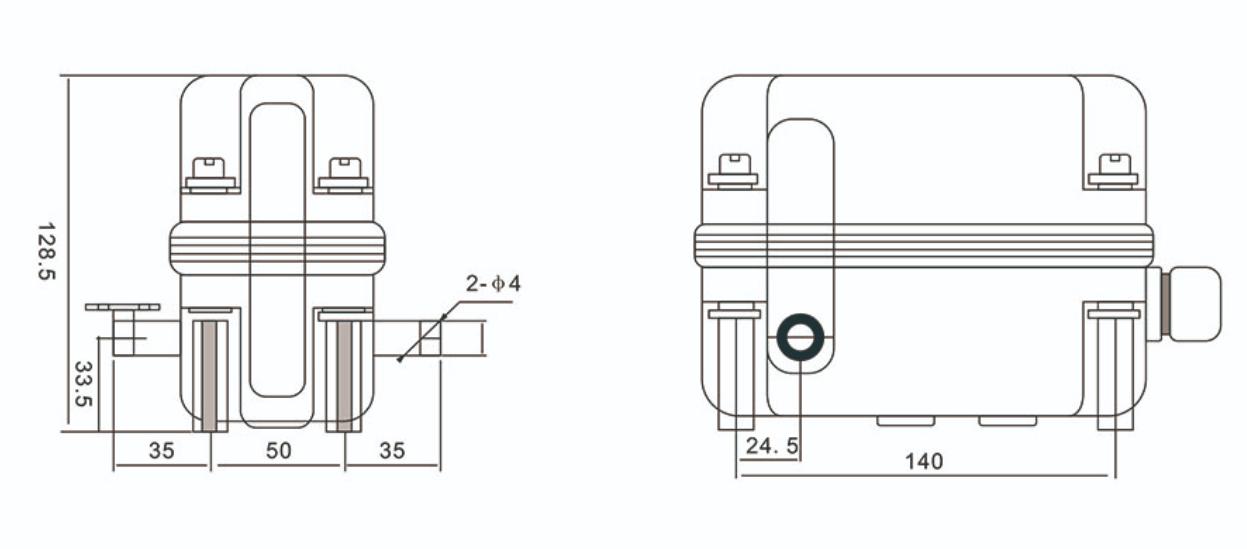

Advantage
Type Meaning
Working conditions
1. Altitude The altitude of the installation location does not exceed 2,000 meters;
2. Medium temperature: The ambient air medium temperature is not higher than +75℃ and not lower than -25℃;
3. Relative humidity: The average relative air humidity in the wettest month of the installation location is not greater than 90% (the average minimum temperature in the month is not greater than +25°C);
4. Pollution level of environmental conditions: The pollution level of environmental conditions is Level III;
5. Installation category The installation category is Category I;
Limit safety function-DXZ series multifunctional angle travel limiter
Product function: Users can click on the example to accurately specify the product specifications and circuits according to their needs
Example 1: DX-4/7W, that is, the control circuit of the limiter is 4, the transmission ratio is 1:274, and it has a sensor
Example 2: DXZ-6/F(600) means: 6 limiter control circuits, non-standard, transmission ratio 1:600, without sensor.
Standard rotation ratio serial number table
|
Serial number ratio |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
|
Gear Ratio |
1:13 |
1:17 |
1:46 |
1:60 |
1:78 |
1:210 |
1:274 |
1:960 |
Non-standard gear ratio
|
Gear Ratio |
1:20 |
1:26 |
1:30 |
1:35 |
1:87 |
1:105 |
1:135 |
1:140 |
|
1:160 |
1:188 |
1:247 |
1:330 |
1:360 |
1:453 |
|
|
