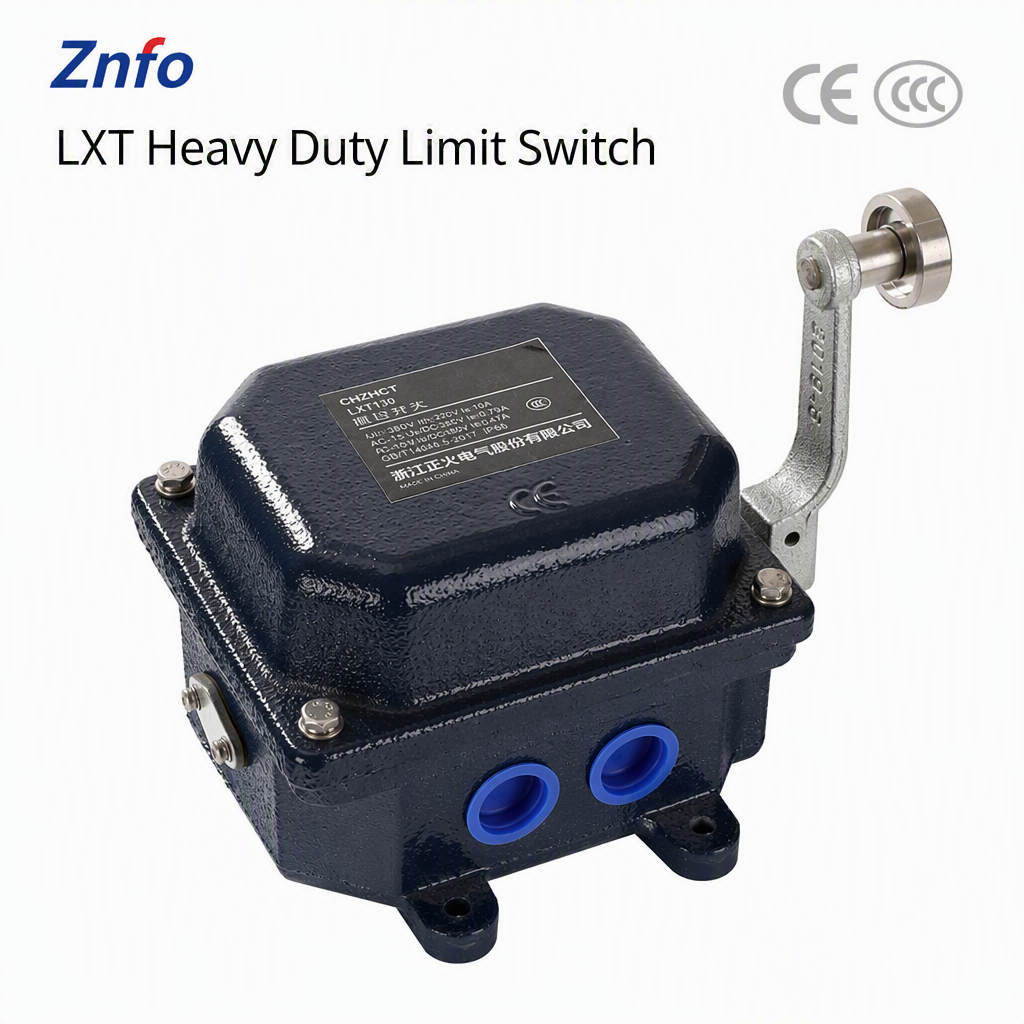

Heavy Duty Limit Switch LXT - Reliable China Suppliers and Factory for Heavy-Duty Applications
Advantage
All products of the company can be customized for production according to user usage scenarios.
Actuator switch has the following form for selection
Straight lever in front; two different types of rocker arms in front; the rotating shaft on the side of the switch can be equipped with rocker arms, fork arms and pedal arms, with or without position locking devices. Protection level IP65, positive break slow action switch and snap action switch.
Main Parameter
Standard
GB/T14048.5-2017
Housing
Cast iron, zinc-plated and yellow chrome-plated, painted
Contacts
Sterling silver, double breakpoint
Insulation
Complies with VDE0110 Class C
Rated insulation voltage
500VAC, 25~60Hz
Constant current
25A
Working current
-30℃~+90℃
Rated operating current
25A
Mechanical description
106 times
Operating speed
maximum 3 m/s, minimum 0.05 m/s
Switching frequency
Maximum 1000 times/hour
Operating angle
Maximum 30°
LXT. □067-11Y 1NO 1NC
LXT.□067-20Y 2NO
LXT. □067-02Y 2NC
LXT. □064-12Y 1NO 2NC
LXT.□064-21Y 2NO 1NC
LXT. □064-30Y 3NO
LXT. □130-33Y 3NO 3NC
(All contact combinations are possible except for normally closed contacts or normally open contacts only)
Z-type cable rocker arm
FAQ
Can these actuator switches be customized?
Yes, all products of the company can be fully customized for production according to specific user usage scenarios.
What actuator forms are available for selection?
You can choose a straight lever in front, two different types of front rocker arms, or a side rotating shaft equipped with rocker arms, fork arms, or pedal arms (with or without position locking devices).
What is the protection level of the switches?
The switches have a protection level of IP65, offering reliable protection against dust and water ingress.
What housing and contact materials are used?
The housing is made of painted, zinc-plated, and yellow chrome-plated cast iron. The contacts are made of sterling silver with a double breakpoint design.
What standards do these switches comply with?
They comply with the GB/T14048.5-2017 standard, and the insulation meets VDE0110 Class C requirements.
Are different contact combinations possible?
Yes, multiple contact configurations like 1NO 1NC, 2NO, 2NC, and up to 3NO 3NC are available. All contact combinations are possible except for configurations containing only normally closed or only normally open contacts.
