WL Limit Switch(ZNFO Special Series)

Double circuit limit switch, widely used;

With a solid one-piece cast aluminum alloy housing;

High mechanical strength; oil-resistant, waterproof and pressure-proof structure;

Easy maintenance due to the setting position indicator plate;

There are many types of actuators, which are easy to use;

The built-in contact seat has a double reed design and long mechanical life.

    Advantage

    All products of the company can be customized for production according to user usage scenarios.

    Working principle and structure

    The working principle of the WL limit switch is based on a mechanical trigger mechanism. When the detected object reaches the preset position, the mechanical structure in the switch is acted upon by an external force, the contact is triggered, and a switch signal is generated. This signal can be used to start, stop or reverse the motor, and can also be used in other control loops to ensure that the equipment operates according to the set logic.

    Common types and characteristics

    WL limit switches are available in two types: contact and non-contact. Contact limit switches use the collision between mechanical contacts and blocks to switch the circuit on and off; non-contact limit switches include reed switches, photoelectric switches, inductive switches, etc., which are commonly used in equipment such as elevators. These types have the characteristics of high environmental resistance, high durability and high recognition, and can adapt to various complex production needs and environmental conditions.



    Environmental Characteristics



    Normative reference

    Product

    IEC60947-5-1,EN60947-5-1,UL508,CSAC22-2N°14

    Components

    IEC60204-1,EN60204-1



    Ambient temperature

    Operation

    -10..+80℃

    Storage

    -40..+80℃

    Vibration resistance

    Compliant with IEC60068-2-6

    10-55Hz,1.5mm Double-amplitude

    Shock resistance

    Compliant with IEC60068-2-27

    Maximum 300ms²(30G less than)

    Protection class

    IP67 NEMA 3,4,13

    Mechanical life

    15,000,000 times



    Characteristics of contact module



    Rated operating characteristics

    AC-15:A300(Ue=240V,le=3A)1 the=10A

    DC-13,Q300(Ue=250V,le=0.27A)Complies with IEC60947-5-1 Appendix Table A EN60947-1



    Rated insulation voltage

    Between terminals of the same pole: AC1000V (600V) 50/60Hz 1min

    Between live metal parts and ground wire: AC2200V(1500V)50/60Hz 1min Uimp 2.5kV

    Between terminals and non-conductive metal parts: AC2200V50/60Hz 1min Uimp 2.5kV

    Insulation resistance

    >100MQ at 500V

    Operating frequency

    120times/min

    Electrical life

    750,000times

    Contact resistance

    Less than 25MQ



    Model

    WL-CA2-2

    WL-CA2-2-Q

    WL-CA32-41

    WL-CL

    WL-D

    WL-D1/D2/D3

    WL-NJ/NJ-30 NJ-2/NJ-S2

    Triggering

    Convex trigger

    Convex trigger

      Any moving part

      At the end

    Convex trigger

      Any moving part



    Triggering type

    picture-2-6



    picture-3-2

    picture-4-2

    picture-5-1

    picture-6-1

    Single stage1C/O

    Single-pole Type Za

    picture-7-1

    picture-8-1

     picture-9-1

     picture-10-1

    picture-11-1C:\Users\44837\AppData\Local\Temp\ksohtml9784\wps10

    picture-12

    Contact operation

    Contacts attract                  Contacts separate

    Max triggering speed

    1.3m/s

    1.3m/s

    1.3m/s

    0.5m/s

    0.5m/s

    1.3m/s

    Max triggering force

    1360g

    1200g

    142g

    2720g

    2720g

    120g

    Min restoring force

    227g



    28g

    910g

    910g

    50g

    Weight

    0.330

    0.340

    0.300

    0.251

    0.251

    0.286

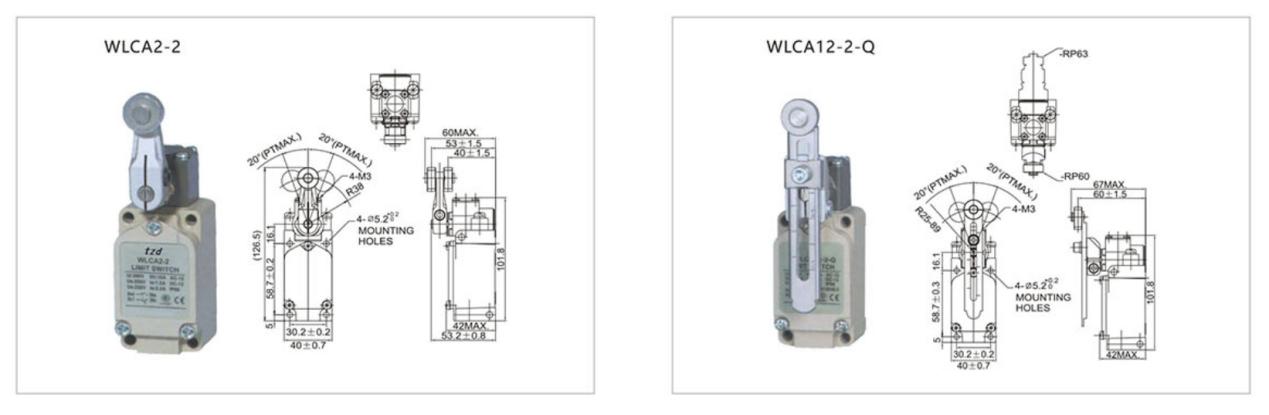

    Overall and installation dimensions

    picture-13

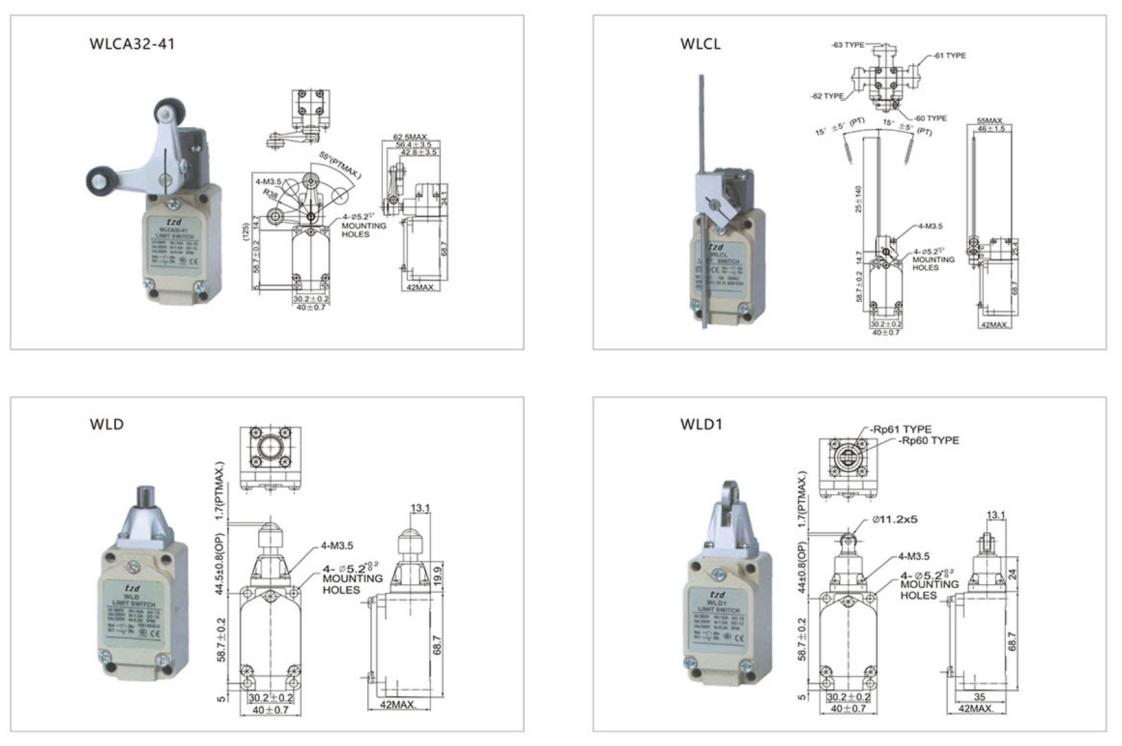

    Overall and installation dimensions

    picture-14
