ZHC20 ZNFO Transcender series AC contacton

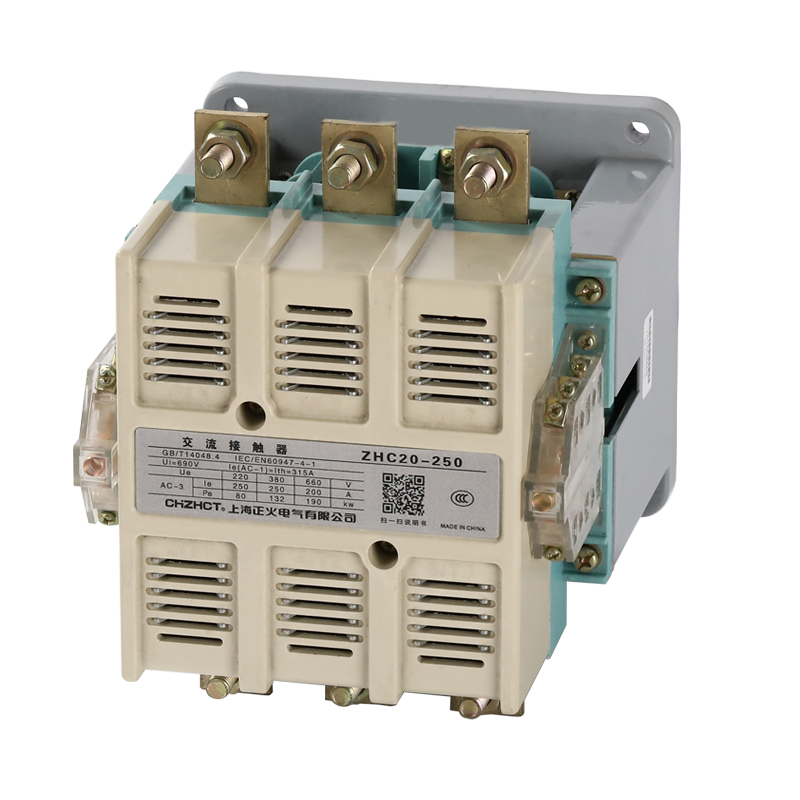

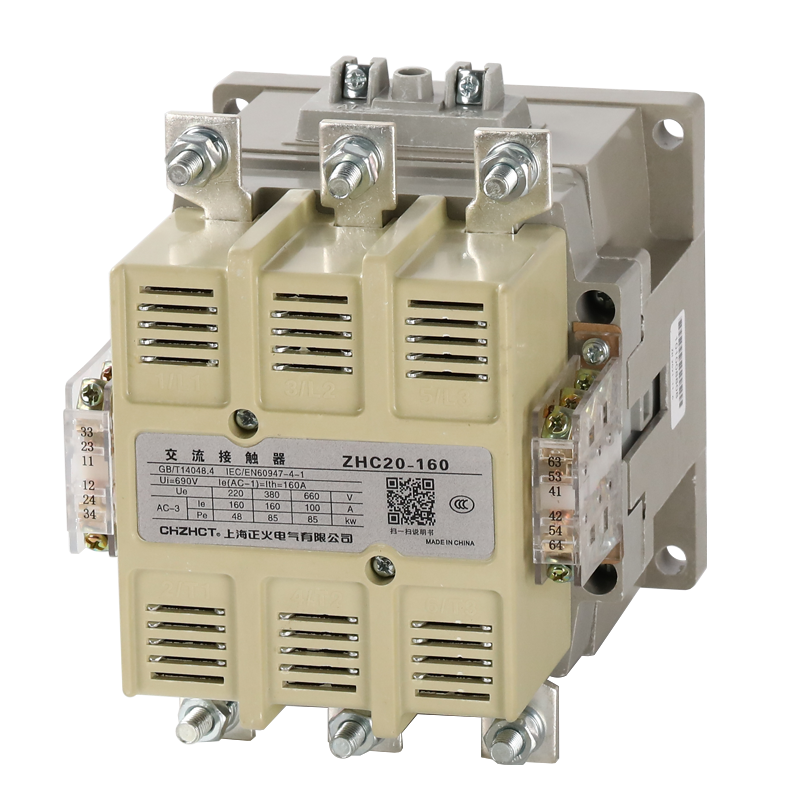

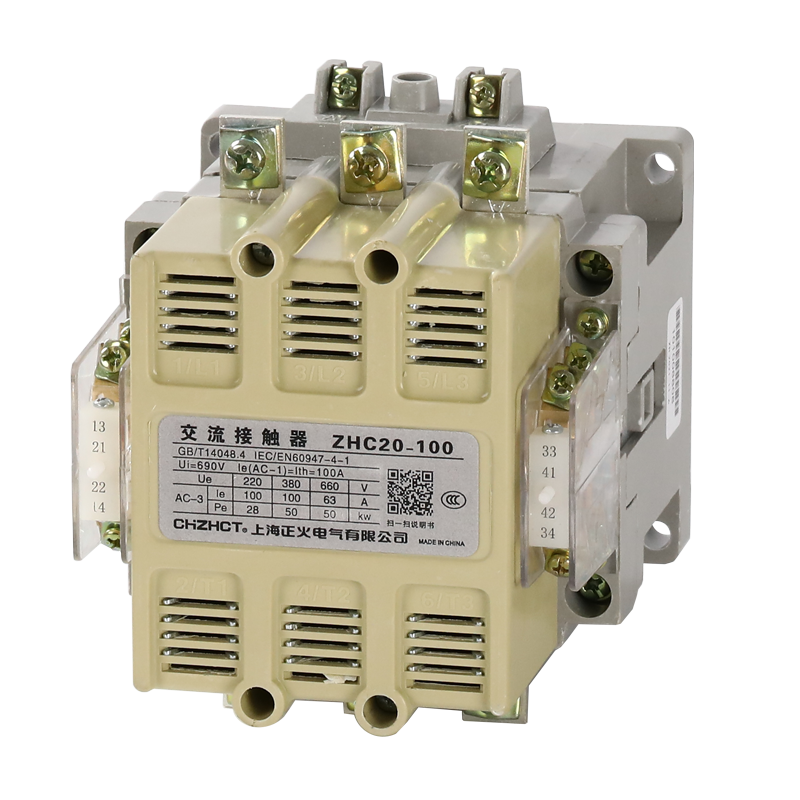

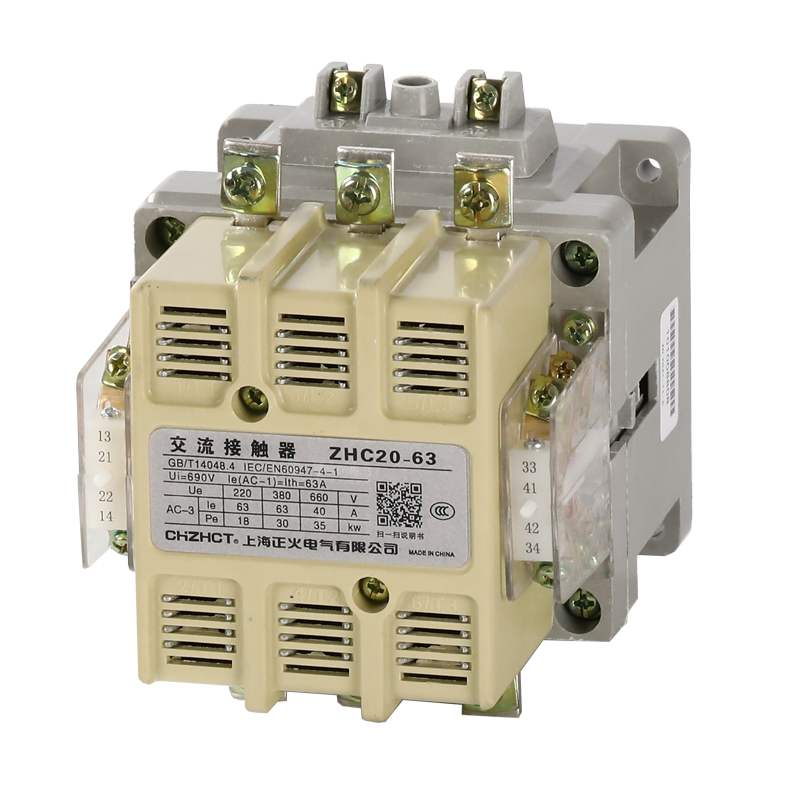

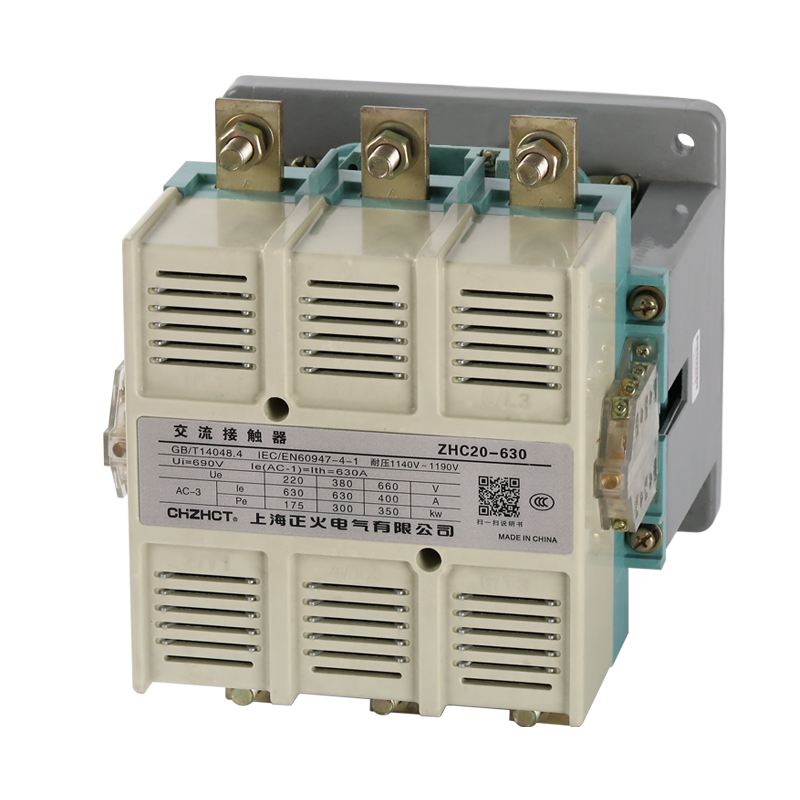

ZHC20 series AC contactor is mainly used in the electric power circuits with the frequency of AC 50Hz (or 60Hz), the rated working voltage of up to 690V (or 1140V) and the rated working current of up to 1000A for connecting and breaking circuits, and working with the appropriate thermal relay or electronic protection device to form the motor starter to protect the circuits that may be overloaded.Executive standards:GB14048.4 and IEC60947-4-1,etc.

Advantage

All products of the company can be customized for production according to user usage scenarios.

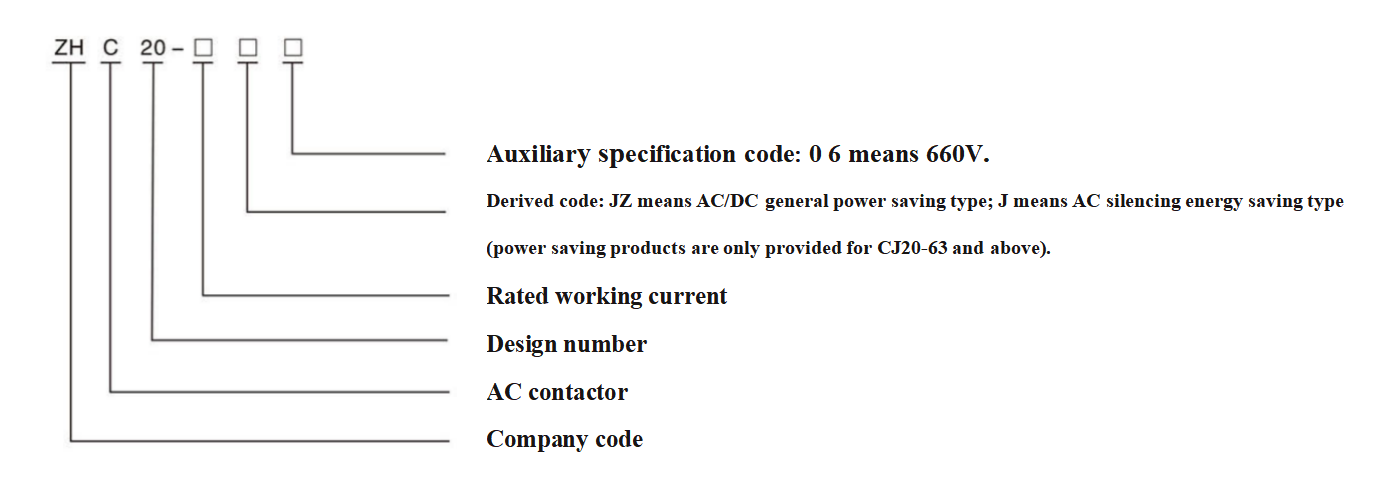

Type and meaning

Normal working conditions and installation conditions

□The ambient air temperature should be-5℃~+40℃,with the average temperature of no higher than+35℃ within 24 hours.

□Altitude: not higher than 2000m;

□Atmospheric conditions: when the highest temperature is +40℃, the relative humidity of the air should not be higher than 50%; A higher relative humidity is allowed at a lower temperature, such as 90% under 20℃, Special measures should be taken for occasional condensation due to temperature change;

□Pollution level: level 3;

□Installation category: category III;

□Installation condition: the inclination between the installation surface and the vertical plane should not exceed±5°;

□Impact vibration : the product should be installed and used in a place without obvious shaking,impact and vibration.

Structural features of the product

□The contact system of the contactor is direct-acting with double breakpoints. For ZHC20-40A and above, the auxiliary contacts are installed on both sides of the main contact as independent components, which are electrically separated;

□ZHC20-10-25A products may be installed by screws or by 35mm standard card track;

□ZHC20-10-16A products have double breakpoints to simply break the are extinguishing chamber, and the rest adopt the plastic grid are extinguishing chamber, which has the advantages of high breaking capacity and high reliability;

□ZHC20-63~630 power saving products have the DC general power saving module, which not only can derive silencing energy saving products or DC operated products,but also do not occupy auxiliary contacts,thus greatly improving the reliability and life of products.

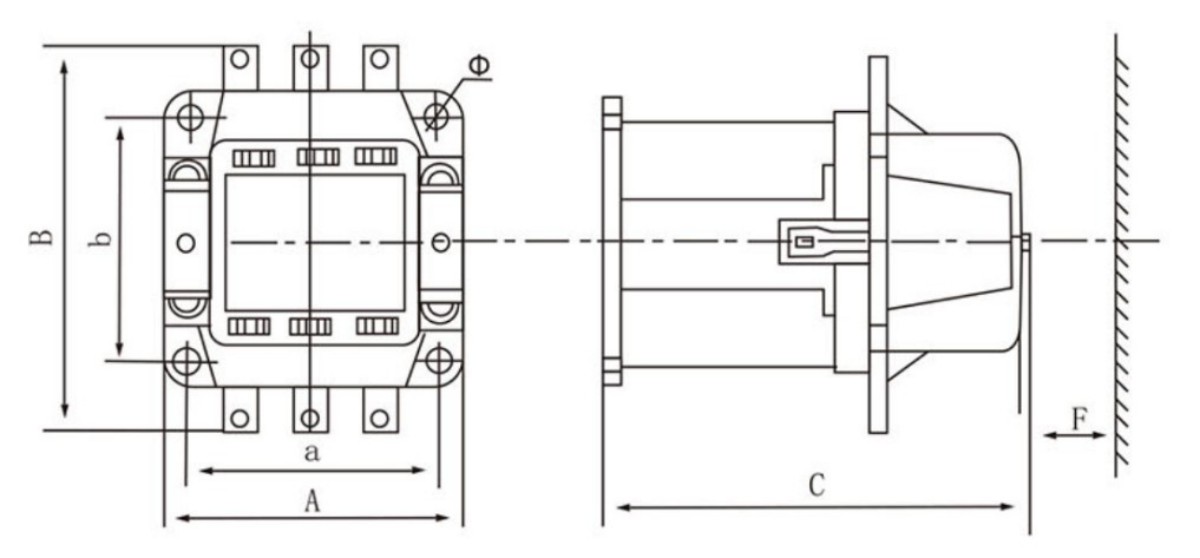

Outline and installation dimensions

Type	A	B	C	a	b	φ	I	F m n	kg
ZHC20-10	45	67.5	107	35±0.31	55±0.37	5±0.3	7.5±0.19	10	0.35
ZHC20-16	45	73	116.5	35±0.31	55±0.37	5±0.3	7.5±0.29	10	0.43
ZHC20-25	52.5	90.5	122	40±0.31	80±0.37	5±0.3	7.5±0.29	15	0.67
ZHC20-40	86.5	111.5	118	70±0.37	80±0.37	5±0.3	15±0.19	30	0.96
ZHC20-63	116	142	146	100±0.4	90±0.4	5.8±0.3	10±0.29	60	2.9
ZHC20-100	120±1.75	145±2	150±3.15	108±0.435	92±0.435	7±0.58	15±0.38	70	3
ZHC20-160	146	187	178	130±0.5	130±0.5	9±0.58	15.5±0.35	80	5.5
ZHC20-250	190	235	230	160±0.5	150±0.5	9±0.58	17±0.35	100	10.5
ZHC20-400	190	235	230	160±0.5	150±0.5	9±0.58	17±0.35	100	10
ZHC20-630	245	294	272	210±0.575	180±0.5	11±0.7	11±0.7	120	21.5
ZHC20-800-1000	245	294	287	210±0.575	180±0.5	11±0.7	11±0.7	120	21.5

Main parameters and technical performance

Type and specifications	Frame code	u A		th A	leA under intermittent periodic work			ing system AC-4	Pe kW under AC-3	leA nuder different intermittent working systems
					AC-1	AC-2	AC-3
C40-63	125	690	220	80	80	63	63	63	18.5	80
			380						30
CJ40-80			660
			220			80	80	80
			380
C140-100			660			63	63	63	55
			220	125	125	100	100	100	30	125
			380
CJ40-125			660			80	80	80
			220			125	125	125
			380					10
			660			80	80	80
CJ40-160	250	690	220	250	250	160	160	160	45	250
CJ40-200			380						75
			660			125	125	125	110
			220			200	200	200	55
C40-250			380						90
			660			125	125	125	110
			220			250	250	250	75
			380					225	132
			660			125	125	125	110
CJ40-315	500	690	220	500	500	315	315	315	90	500
CJ40-400			380					250	160
			660						300
CJ40-500			220			400	400	400	110
			380					315	220
			660			315	315		300
			220			500	500	500	150
			380					400	280
			660			315	315	315	300
CJ40-630	1000	690	220	800	630	630	630	630	200	630
CJ40-800			380					500	335
C140-1000			660			500	500	500	475
			220		800	800	800	800	250	800
			380					630	450
CJ40-1250	1250		660			500	500	500	475
			220	1000	1000	1000	1000	1000	360	1000
			380						550
			660			630	630	500	570
			220	1250	1250	1250	1250	1250	375	1250
			380						600
			660			800	800	600	630
C40-125/11	1250	1140	1140	125	125	40	40	40	55	125
C140-250/11	250		1140	250	250	80	80	80	110	250
C140-500/11	500		1140	500	500	160	160	160	220	500
CJ40-1000/11	1000		1140	1000	1000		400		600	1000
