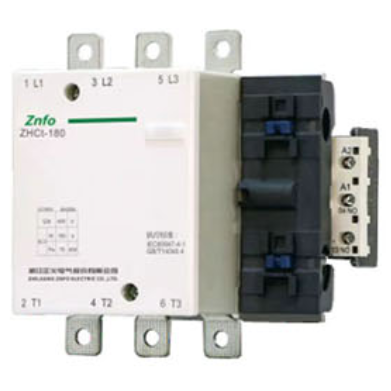

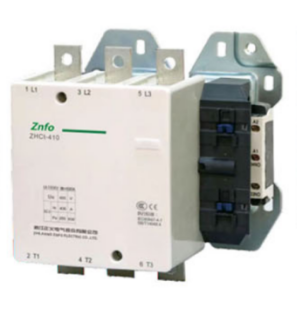

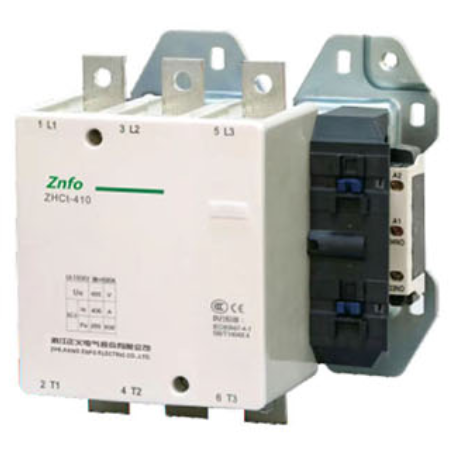

ZNFO Green Innovation series high-current AC contactor

ZHCt direct-acting AC contactor is mainly used in the electrical power systems with the frequency of AC 50Hz(or 60Hz),the rated working voltage of up to 1000V,and the rated working current of up to 1400A for remote connection and breaking of circuits,as well as starting,stopping, reversing and reverse connection of brake motors.

Overview

Executive standards:GB/T14048.4-2020,,IEC60947-1(1999),IEC947-4-1

There are 12 specifications for this series of contactors,including ZHCt-120,150,185,225,265,330,400,500,630,780,1200 and 1400.The outline and installation dimensions of this series of contactors are the same as those ofLC1-DandLC1-F.

ZHCt-120-780 contactors can also be used as DC contactors.(Please contact the Company).

product details

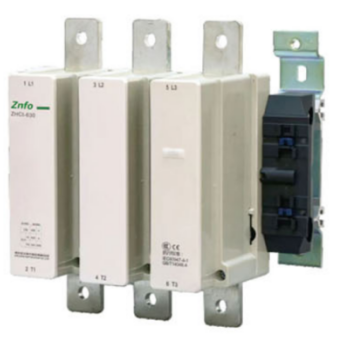

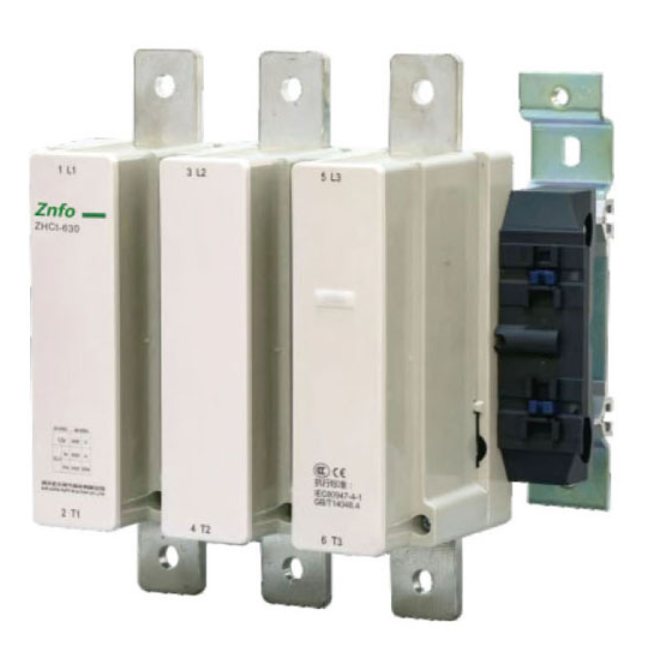

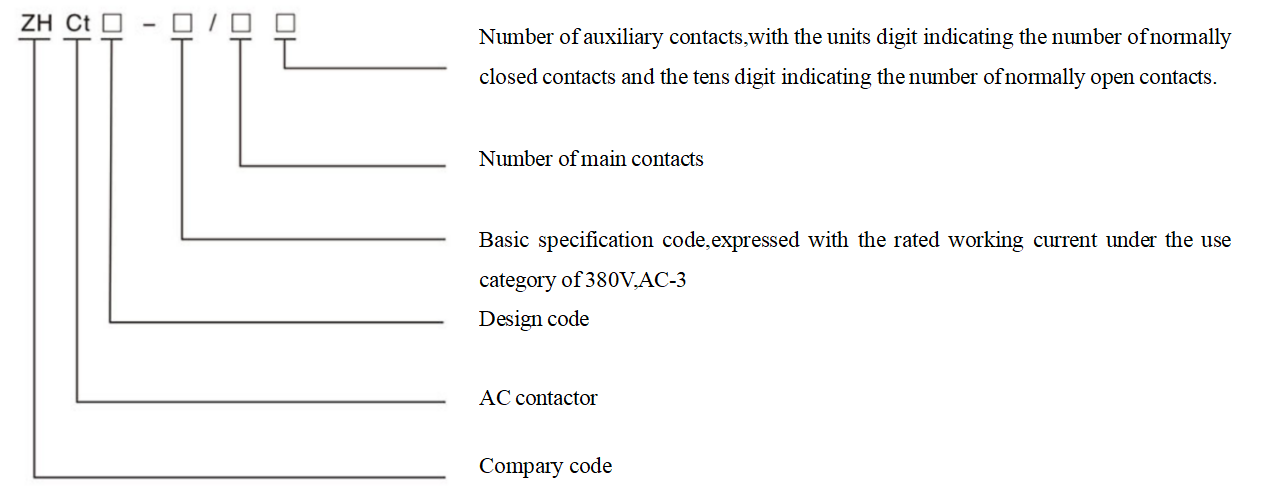

Type and meaning

Product structure characteristics

□It has simple, compact, new and unique, with modular function and assembly modularization.

□The coil is packaged in plastic, with advanced technology, beautiful appearance, good insulation strength and high mechanical strength.

□For ZHCt-120~780-1200-1400, coil and static iron core form a drawer for pushing in and puling out by pressing the button and thus for easy repair.

□The are extinguishing chamber is made of high-strength plastic, which has high mechanical strength and good are extinguishing performance and is fixed by locking bar rotating compression spring, which is convenient and reliable.

□There are many auxiliary contacts, which are replaced easily. For ZHCt-120~780~1200~1400 contactors, the coil is provided with a special auxiliary contact for DC control of self-locking conversion. It is allowed to additionally install two auxiliary contactor sets so that there are 8 pairs of auxiliary contactors. The auxiliary contactor sets are installed only alone the guide rail. with no need of screws. Give it a push,when you hear a click, the auxiliary contactor sets are installed successfully.If the air damping type time relay is required, it can be used directly to replace the auxiliary contact set.

□The contactor can save electricity significantly,ZHCt-400-780~1200-1400 features AC input and DC control.

□The mechanical interlocking of the contactor is simple and reliable. Two contactors can be interlocked horizontally. ZHCt-120 ~630contactors can also realize vertical interlocking of two contactors and vertical interlocking between three contactors.

Main parameters and technical performance

□Action performance:The pull-in voltage is 85%~110% Us the release voltage is 20%-75%Us for the AC coil.and 10%~75%Us for the DC coil.

□Coil control voltage:ZHCt-120~780~1400 AC 127.220,380V DC 110,220V,can also be used for coils of any other voltage.

□Recommended short circuit protection for contactors is NT series fuse.

Main parameters and technical performance indicators of the contactor

T y p e		ZHCt-120	ZHCt-150	ZHCt-185	ZHCt-225	ZHCt-265	ZHCt-330 ZHCt-400		ZHCt-500	ZHCt-630	ZHCt-780
Rated insulation voltage		1000
Conventional thermal current		200	250	275	315	350	450	500	700	800	800
Working current under the use category of AC-3	380V	115	150	185	225	265	330	400	500	630	780
	660V	86	107	118	135	170	225	305	355	460	630
	1000V	46	60	71	90	100	132	115	200	320	312
Control motor power under the use category of AC-3	380V	55	75	90	110	132	160	200	250	335	450
	660V	80	100	110	129	160	220	280	335	450	475
	1000V	65	65	100	100	147	160	185	335	450	450

Outline and installation dimensions

Notes:1)M is the flashover distance;2)F is the space required for replacement of coils.

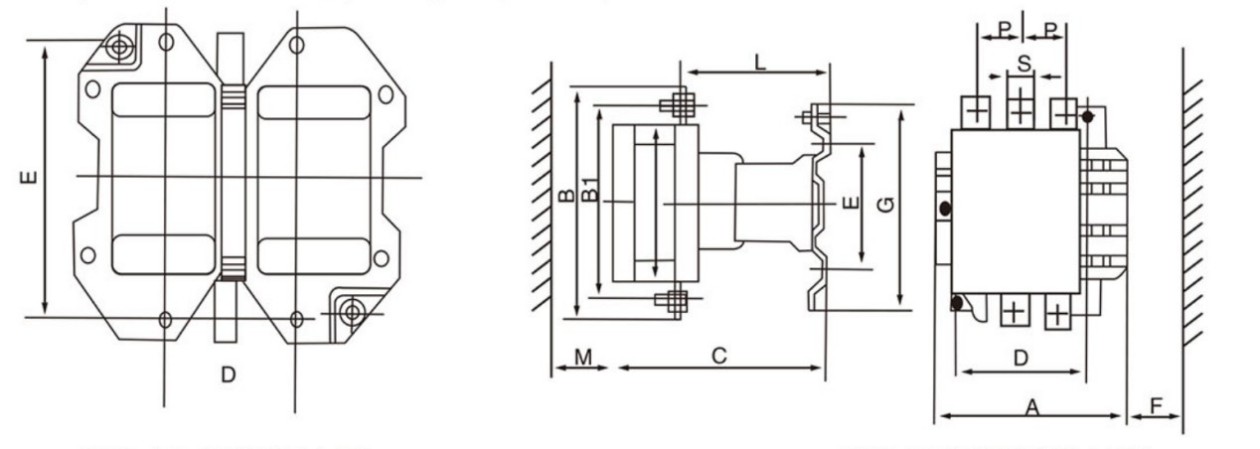

Outline dimensions of ZHCt-400~500 Fig.3 Outline and installation dimensions ofZHCt-630 Fig.4

Type	Number of poles	A	B	C	D	E	F	G	H	M)	P	S	B1	Mounting Screws
ZHCt-120	3-pole	166.5	162	171	80	113	131	137	124	40	37	15	147	M6
ZHCt-120	4-pole	200.5	162	171	80	113	131	137	124	40	37	15	147	M6
ZHCt-150	3-pole	166.5	172	171	80	113	131	137	124	40	40	20	150	M6
ZHCt-150	4-pole	200.5	172	171	80	113	131	137	124	40	40	20	150	M6
ZHCt-185	3-pole	168.5	174	181	80	113	131	137	137	40	40	20	154	M6
ZHCt-185	4-pole	208.5	174	181	80	113	131	137	137	40	40	20	154	M6
ZHCt-225	3-pole	168.5	197	181	80	113	131	137	137	50	48	25	172	M6
ZHCt-225	4-pole	208.5	197	181	80	113	131	137	137	50	48	25	172	M6
ZHCt-265	3-pole	201.5	203	213	96	113	147	145	147	50	48	25	178	M6
ZHCt-265	4-pole	224.5	203	213	96	113	147	145	147	50	48	25	178	M6
ZHCt-330	3-pole	213	209	219	96	113	147	145	158	60	48	25	181	M6
ZHCt-330	4-pole	261	209	219	96	113	147	145	158	60	48	25	181	M6
ZHCt-400	3-pole	213	209	219	80	175	119	209	158	60	48	25	181	M8
ZHCt-400	4-pole	261	209	219	80	175	119	209	158	60	48	25	181	M8
ZHCt-500	3-pole	233	238	232	80	175	141	209	158	70	55	30	208	M8
ZHCt-500	4-pole	288	238	232	140	175	141	209	158	70	55	30	208	M8
ZHCt-630	3-pole	309	225	225	180	185	181	280	202	80	40	40	264	M10
ZHCt-630	4-pole	389	225	225	240	185	181	280	202	80	40	40	264	M10
