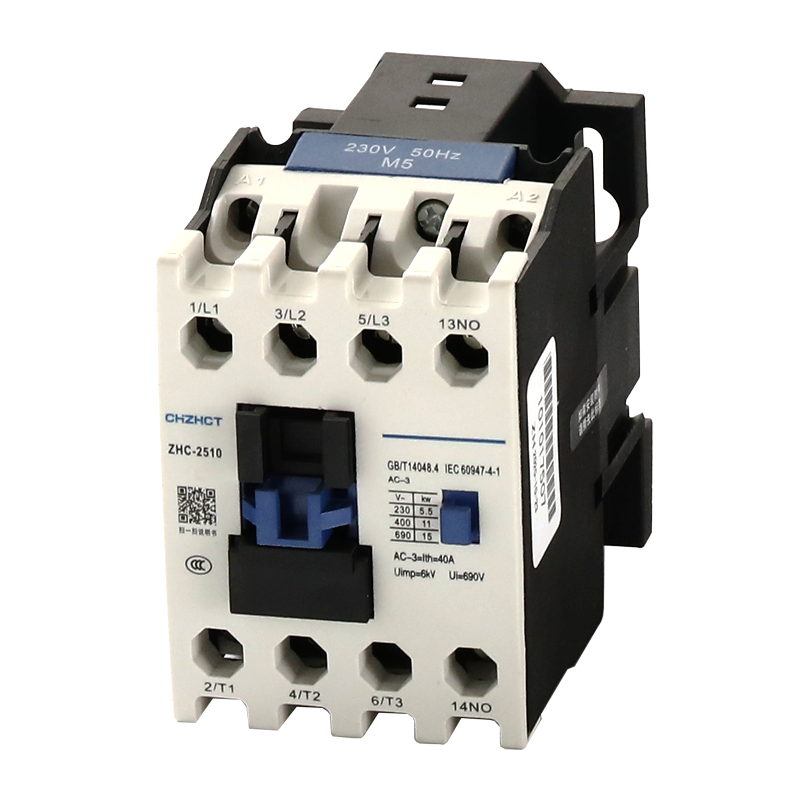

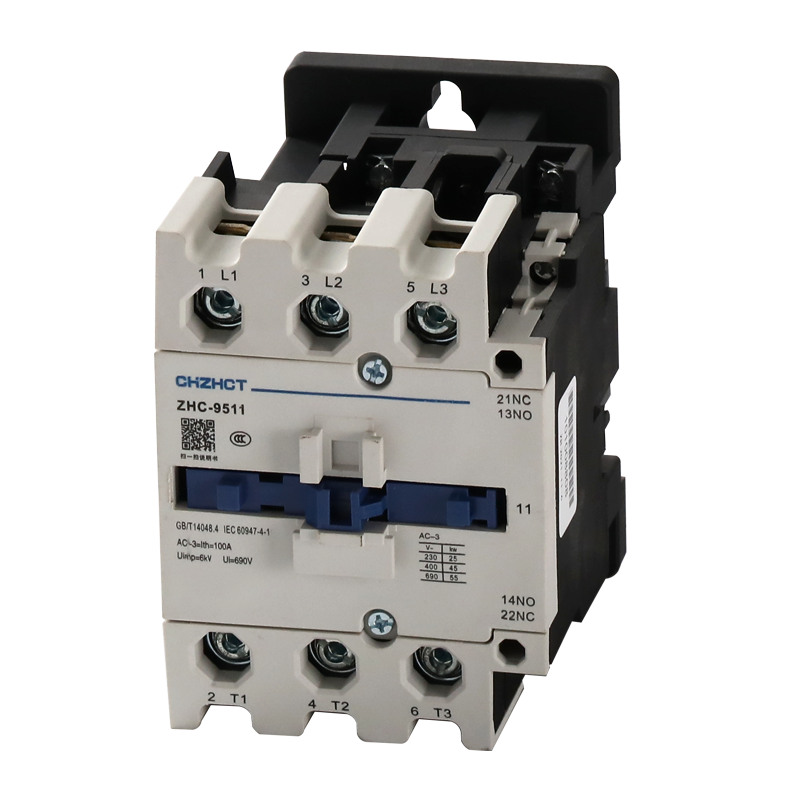

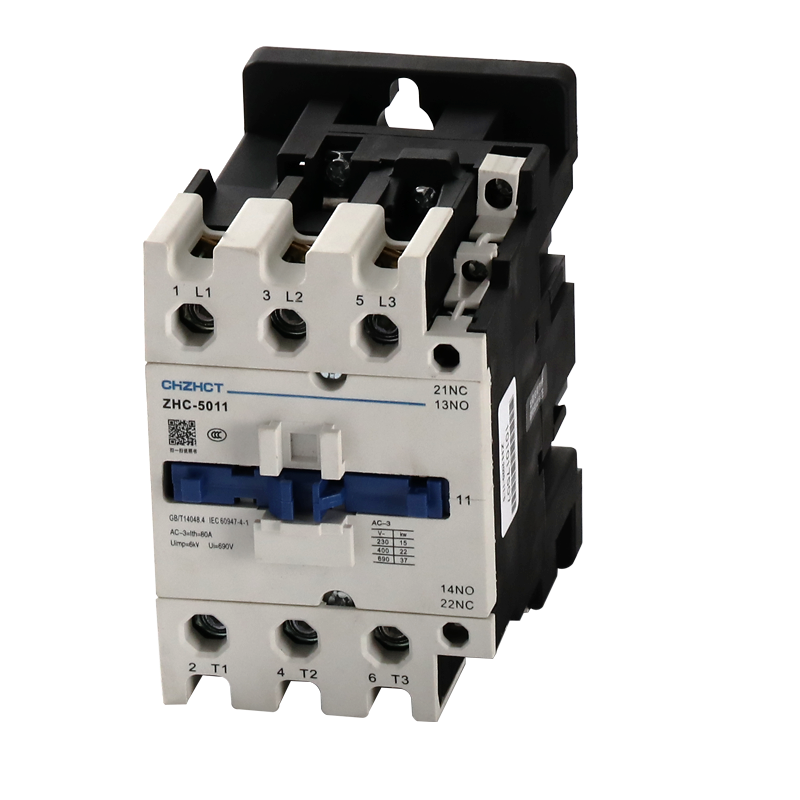

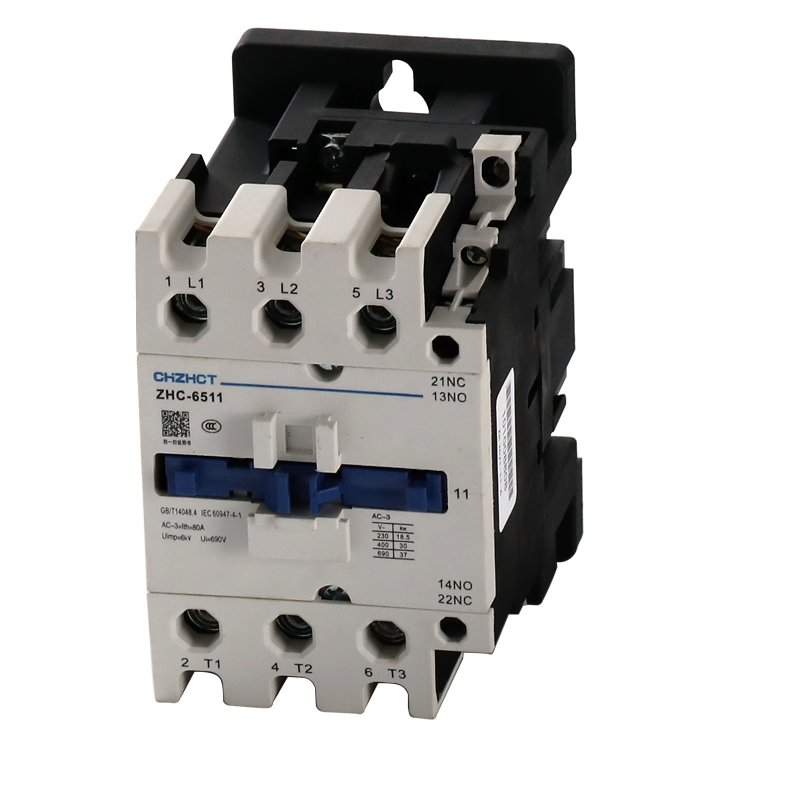

ZNFO Transcender series AC contactor

ZHC series AC contactor (hereinafter referred to as the contactor)is mainly used in the circuits with the frequency of AC 50Hz or 60Hz,the voltage of up to 690V,and the rated working current of up to 95A under the use categories of AC-3 and 400(380)V for connecting and breaking circuits remotely,frequently starting and controlling AC motors,and working with the appropriate thermal relay to form the electromagnetic starter to protect the circuits that may be overloaded.
Executive standards:GB/T-14048.4-2020,IEC60947-1(1999),IEC 947-4-1.

    Contact us

    Advantage

    All products of the company can be customized for production according to user usage scenarios.

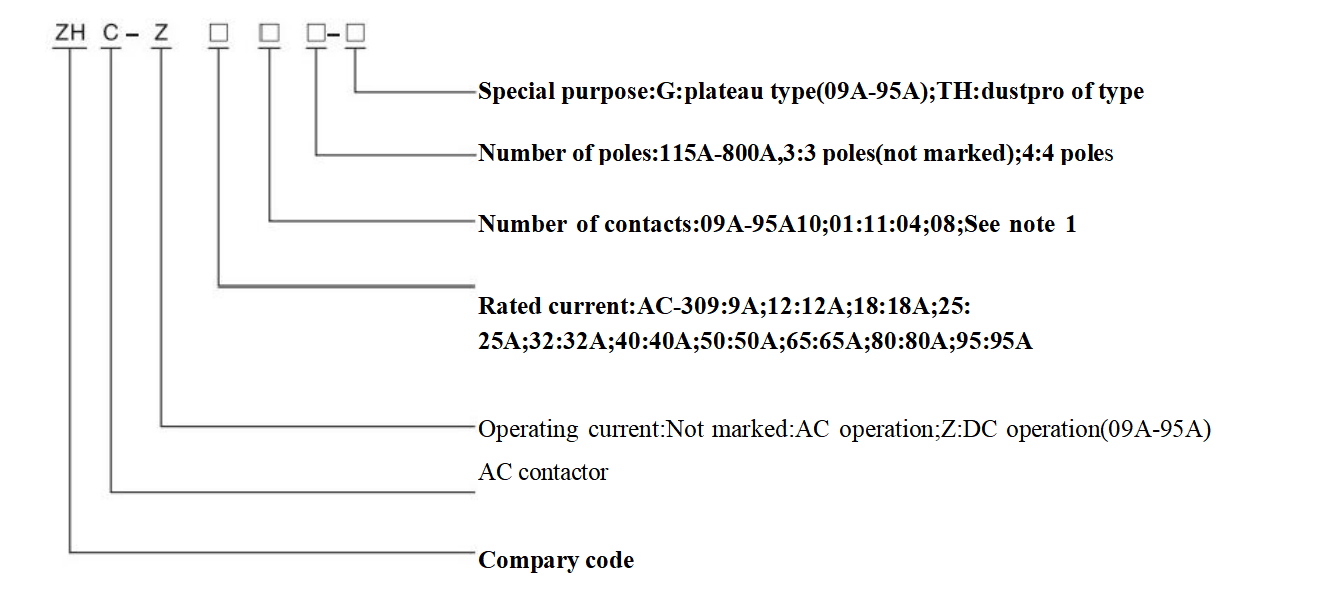

    Type and meaning

    dfgse

    Note  l

    09A-95Aadopts  the  number  of  auxiliarycontacts,while   115A-800A   adopts   the  number  of  poles.

    10means  three  normally  open  main  contacts  and  one  normally  openauxiliary  contact(32Aand  below);

    01  mcans  three  normally  openmain  contacts  and  one  normally  closed  auxiliary  contact(32Aand  below);

    11  means  three  normally  open  main  contacts,one  normallyopenauxiliary  contact  and  one  mormally  elosed  auxiliary  contact(40Aand  above).

    Normal working conditions and installation conditions

    □The ambient air temperature should be -5℃ ~+40℃, with the average temperature of no higher than +35℃ within 24 hours.
    □Altitude: not higher than 2000m;
    □Atmospheric conditions: when the highest temperature is +40℃, the relative humidity of the air should not be higher than 50%; A higher relative humidity is allowed at a lower temperature, such as 90% under 20℃ .Special measures should be taken for occasional condensation due to temperature change;
    □Pollution level:level 3:
    □Installation category: category III:
    □Installation condition: the inclination between the installation surface and the vertical plane should not exceed ±5°；
    □Impact vibration: the product should be installed and used in a place without obvious shaking, impact and vibration.

    Main parameters and technical performance

    Main parameters and technical performance indicators of the contactor

    Type

    ZHC- 09

    ZHC- 12

    ZHC- 18

    ZHC- 25

    ZHC- 32

    ZHC- 40

    ZHC- 50

    ZHC-

    65

    ZHC- 80

    ZHC- 95



    Rated working current

    400(380)V

    AC-3

    9

    12

    18

    25

    32

    40

    50

    65

    80

    95

    AC-4

    3.5

    5

    7.7

    8.5

    12

    18.5

    24

    28

    37

    44

    690(660)V

    AC-3

    6.6

    8.9

    12

    18

    21

    34

    39

    42

    49

    49

    AC-4

    1.5

    2

    3.8

    4.4

    7.5

    9

    12

    14

    17.3

    21.3

    Conventional free air thermal current

    20

    20

    32

    40

    50

    60

    80

    80

    95

    95

    Rated insulation voltage

    690

    690

    690

    690

    690

    690

    690

    690

    690

    690



    Controllable three-phase squirrel cage motor power(AC-3)kW



    230(220)V

    2.2

    3

    4

    5.5

    7.5

    11

    15

    18.5

    22

    25



    400(380)V

    4

    5.5

    7.5

    11

    15

    18.5

    22

    30

    37

    45



    690(660)V



    5.5



    7.5



    10



    15



    18.5



    30



    37



    37



    45



    45

    Operating

    frequency (times/h)

    Electricalendurance mechanical endurance

    AC-3

    1200

    1200

    1200

    1200

    600

    600

    600

    600

    600

    600

    AC-4

    300

    300

    300

    300

    300

    300

    300

    300

    300

    300

    3600

    3600

    3600

    3600

    3600

    3600

    3600

    3600

    3600

    3600



    Electrical endurance

    (10.000   times)

    AC-3

    100

    100

    100

    100

    80

    80

    60

    60

    60

    60

    AC-4

    20

    20

    20

    20

    20

    15

    15

    15

    10

    10

    Outline and installation dimensions

    cdgern3

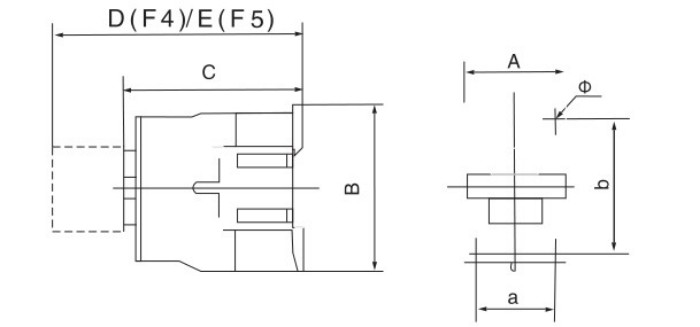

    Outline and installation dimensions ofZHC-09~32
    cdgern4

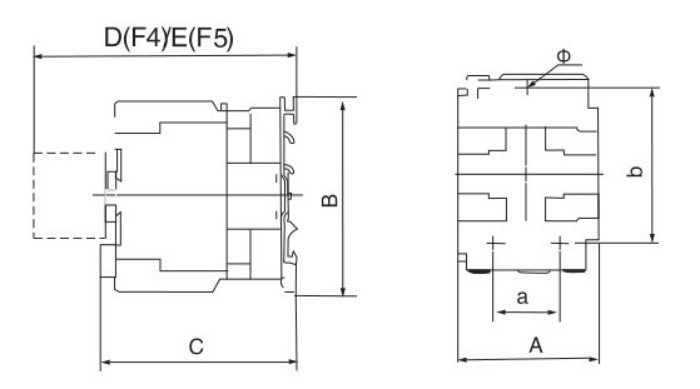

    Outline and installation dimensions ofZHC-40~95



    Contactor type

    A max

    B max

    C max

    D max

    E max

    a

    b

    φ

    ZHC-09~12

    47

    76

    82

    120.5

    140.5

    34/35

    56/60

    4.5

    ZHC-18

    47

    76

    87

    125.5

    145.5

    34/35

    50/60

    4.5

    ZHC-25

    57

    86

    95

    133.5

    153.5

    40

    48

    4.5

    ZHC-32

    57

    86

    100

    138.5

    158.5

    40

    48

    4.5

    ZHC-4011~6511

    77

    129

    116

    154.5

    174.5

    40

    105

    6.5

    ZHC-4004~6504

    84

    129

    116

    154.5

    174.5

    40

    105

    6.5

    ZHC-4008~6508

    84

    129

    127

    154.5

    174.5

    40

    105

    6.5

    ZHC-8011~9511

    87

    129

    127

    165.5

    185.5

    40

    105

    6.5

    ZHC-8004~9504

    96

    129

    122

    160.5

    180.5

    40

    105

    6.5

    ZHC-8008~9508

    96

    129

    135

    160.5

    180.5

    40

    105

    6.5
